Description

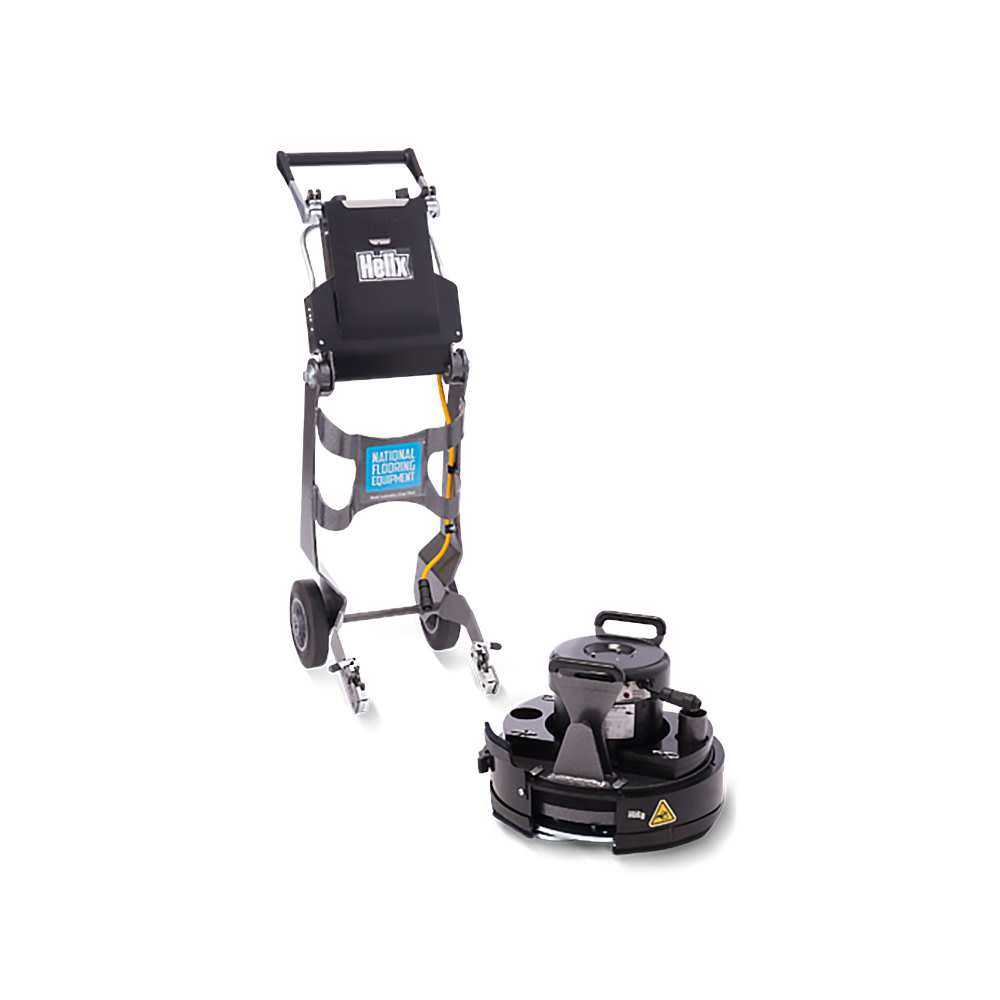

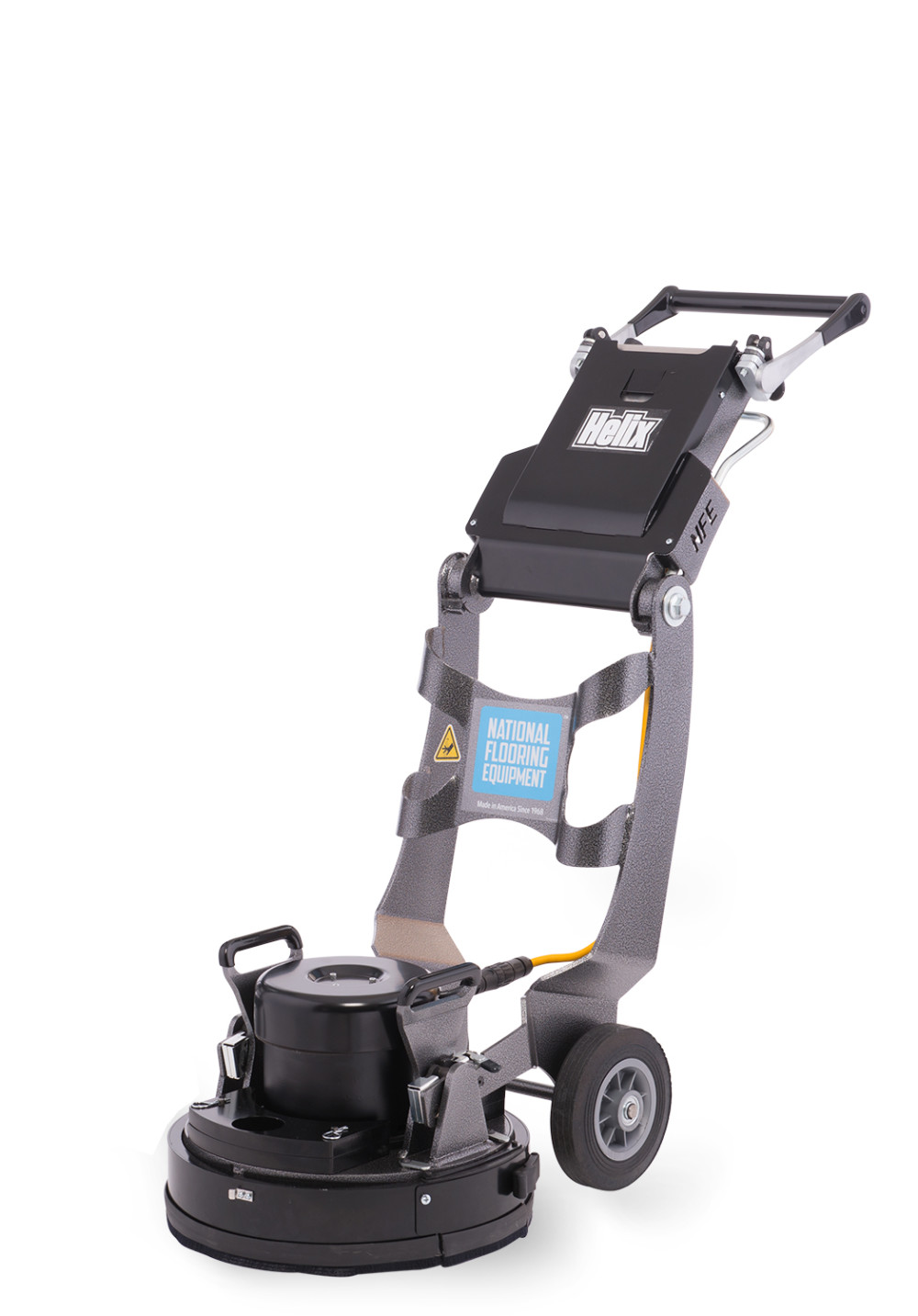

120V Planetary Grinder
Designed for small jobs and tough-to-reach spaces, this 16-inch planetary grinder creates the perfect profile for new coatings. This easy-to-operate machine features an edge grinder, dual-speed operation, an adjustable handle, and a floating dust skirt for maximum efficiency.
Features
Fully adjustable handle accommodates a range of operating positions
Quick-release levers allow the machine to be separated into two pieces for easy transport
Capable of edge grinding on the left or right side of the machine by rotating the side of the dust skirt up, allowing the operator to grind within a half inch of the wall
Removable weights give the operator freedom to increase or decrease head pressure when grinding
16-inch grinding plate incorporates a floating tooling assembly that allows the cutting head to follow the contours of the floor; the tooling assembly rotates 180 degrees for easy tooling changes
LED light illuminates the surface directly behind the machine
Dual-speed motor increases the versatility of this machine; operating at high or low speed
Specifications
Acme Tools Brand Name
NATIONAL FLOORING EQUIPMENT
Acme Tools Part Number
HELIX
Assembled Depth (in)
47
Assembled Height (in)
47.6
Assembled Weight (lbs)
206
Assembled Width (in)
17.5
California Proposition 65 Warning Required
Yes
Country of Origin
United States
Grinder Wheel Size (In)
16
Grinding Speed (rpm)
243-3200
Height (in)
47.6
Horsepower (hp)
1.5
Maximum RPM
3200
Package Contents
Planetary Grinder
Package Depth
47
Package Height
47.6
Package Weight
207
Package Weight (lbs)
207
Recommended Safety Equipment
Protective Eyewear
Size
16 in
Start Type
Electric
