Description

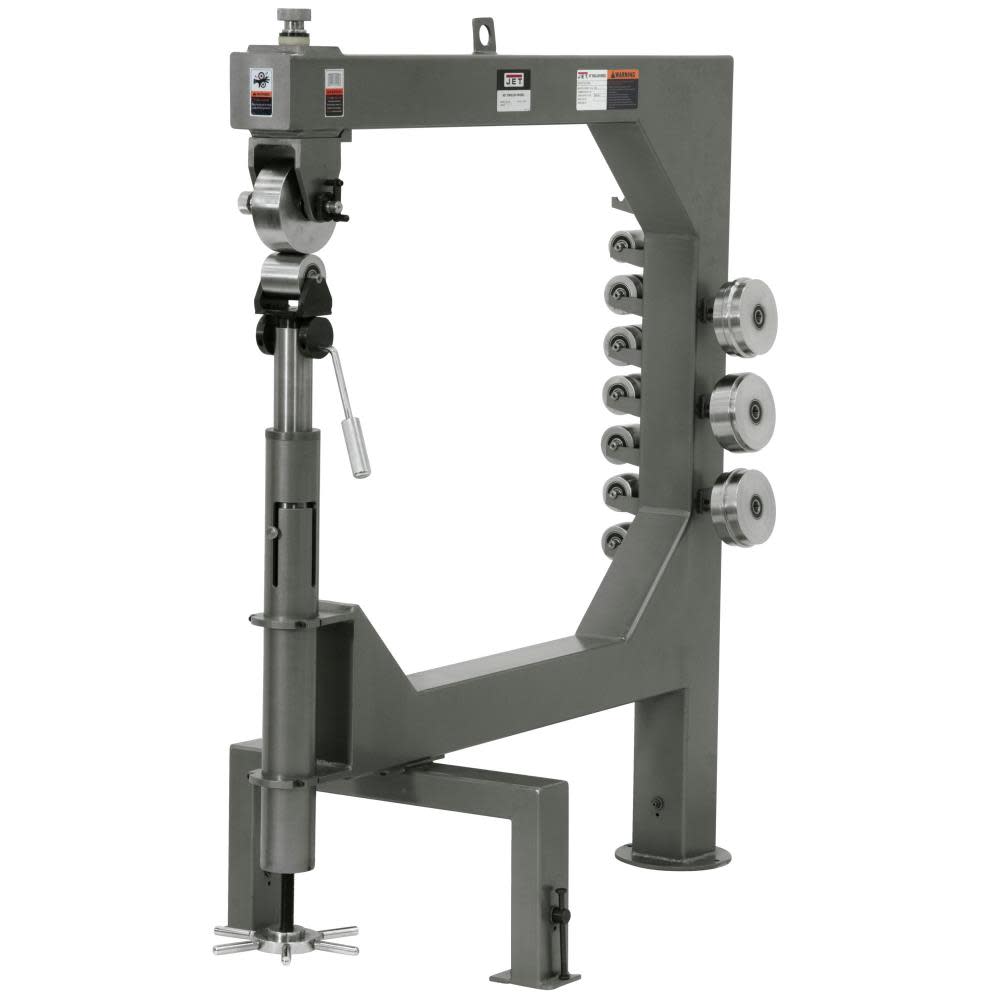

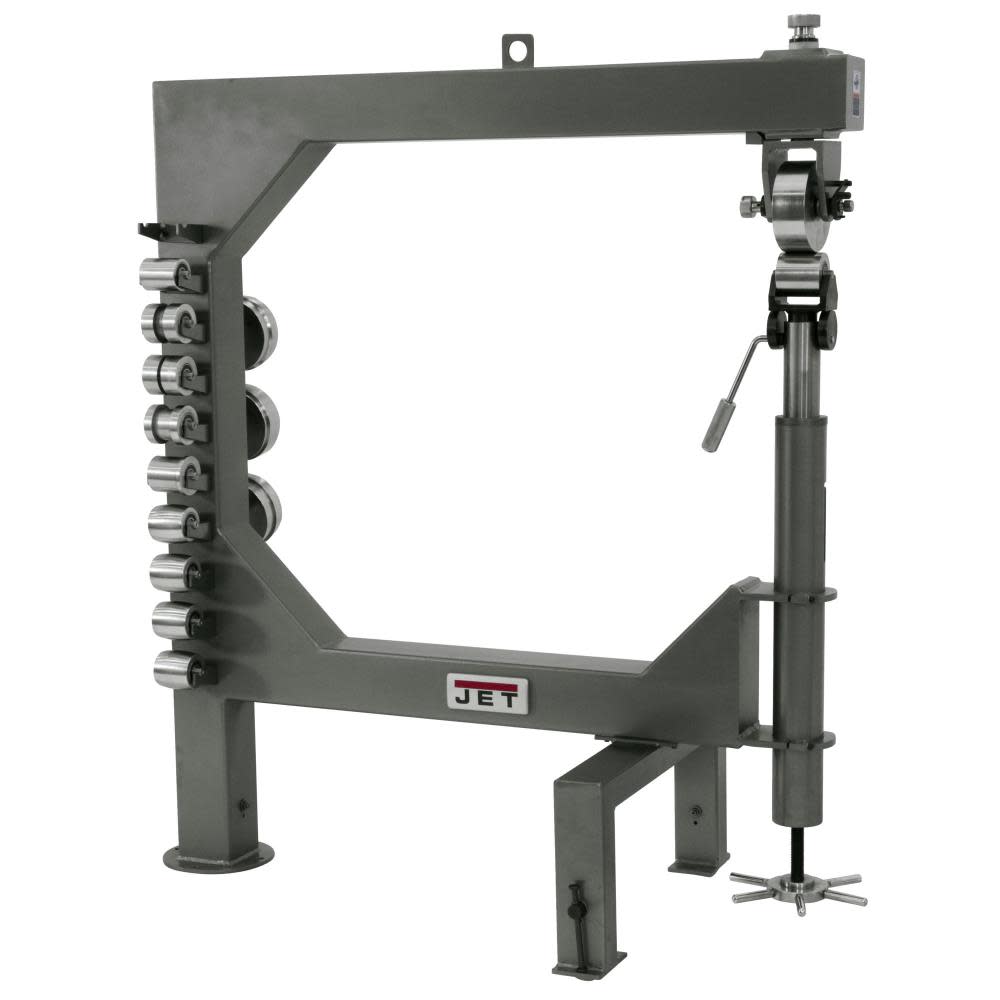

45 In. Professional English Wheel
Jet’s metal forming and shaping machines are used by metal working craftsmen to form compound curves in sheet metal for the restoration of collectible cars, motorcycles, and airplanes. Jet’s English wheel has an upper rolling wheel and comes standard with 4 rolling wheels and 10 lower anvil wheels with different crowns to create different radius’s.
Features
Rolls beads and forms mild steel sheet metal up to 16 gauge
Rolls beads and forms aluminum and copper up top 1/8 In. thick
Machine supplied with 10 anvils and 4 rolling wheels
Three sets of popular fender groove shaping wheels
Throat 45 In.

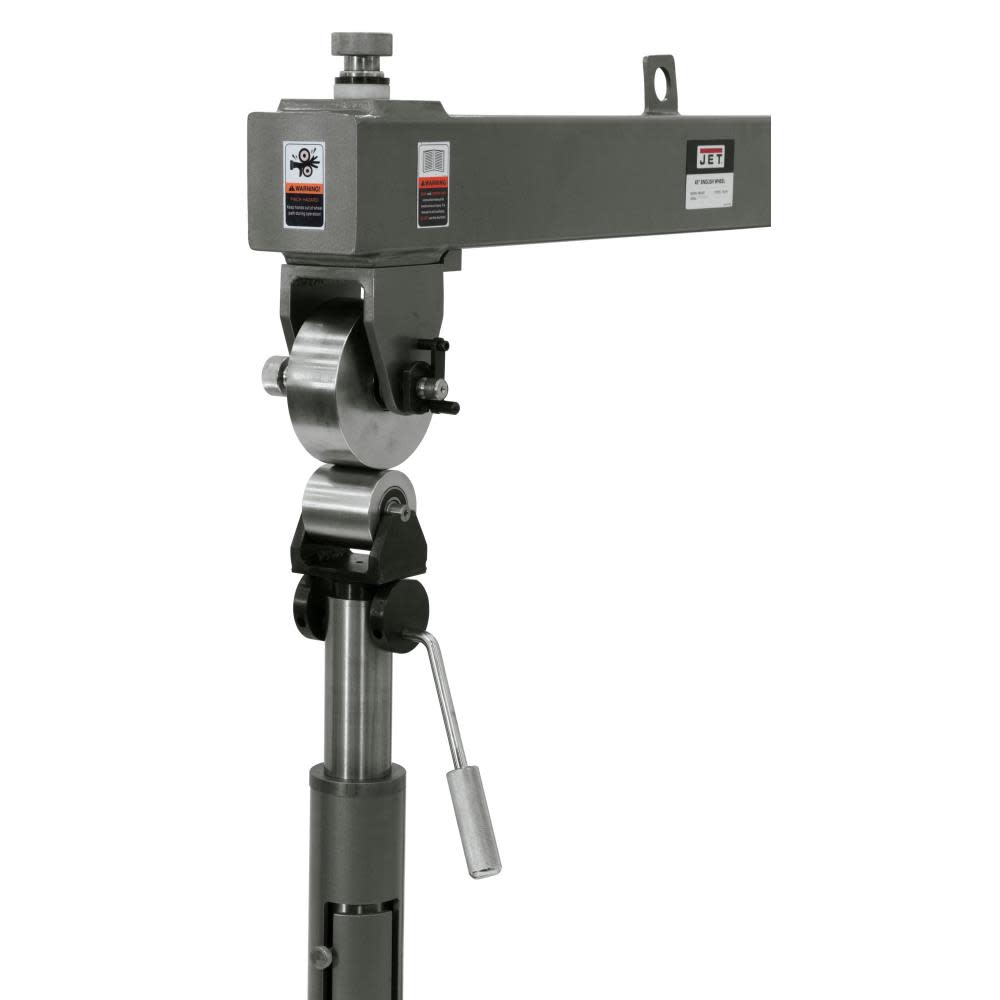

Quick cam handle releases the work piece
Both wheels swivel 90°
Quick wheel change without using any tooling
Polished wheels supplied with sealed bearings for smooth operation
Storage brackets for rolling and anvil wheels

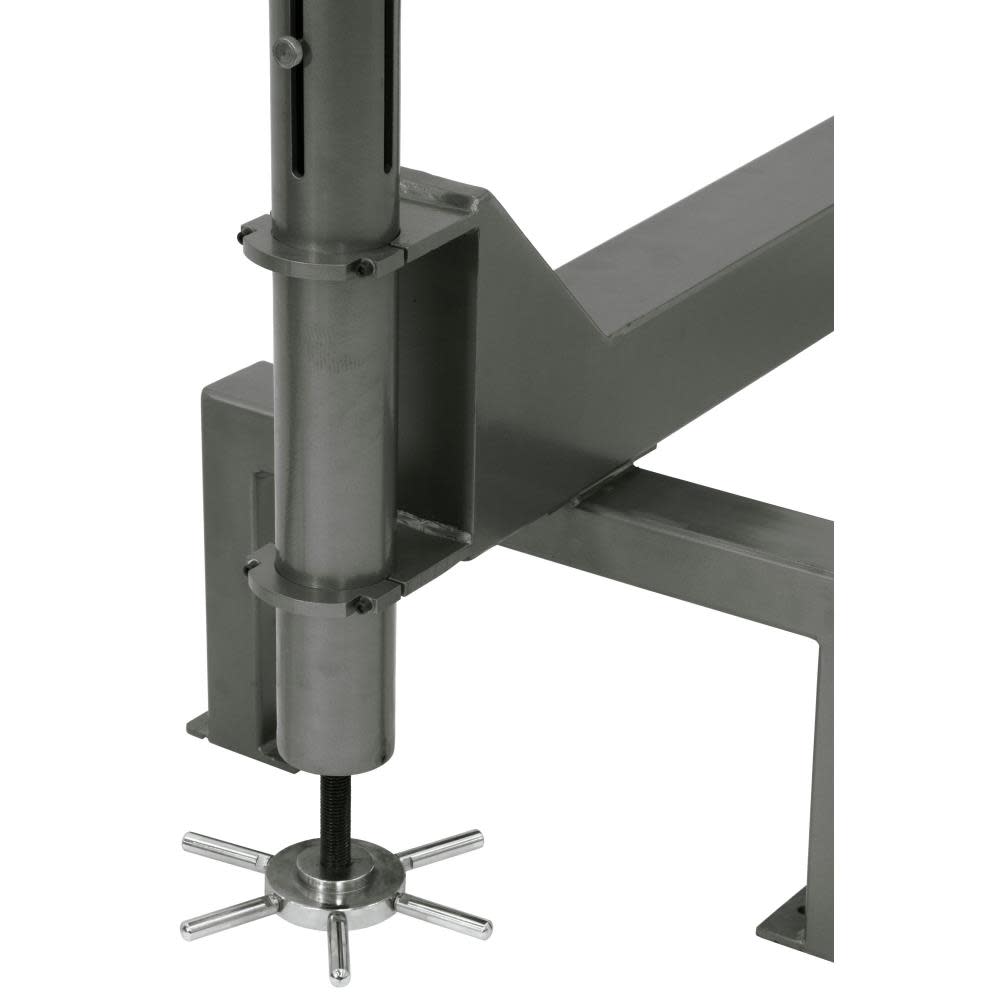

Screw lift assembly designed for comfortability and precise pressure setup
Heavy duty frame

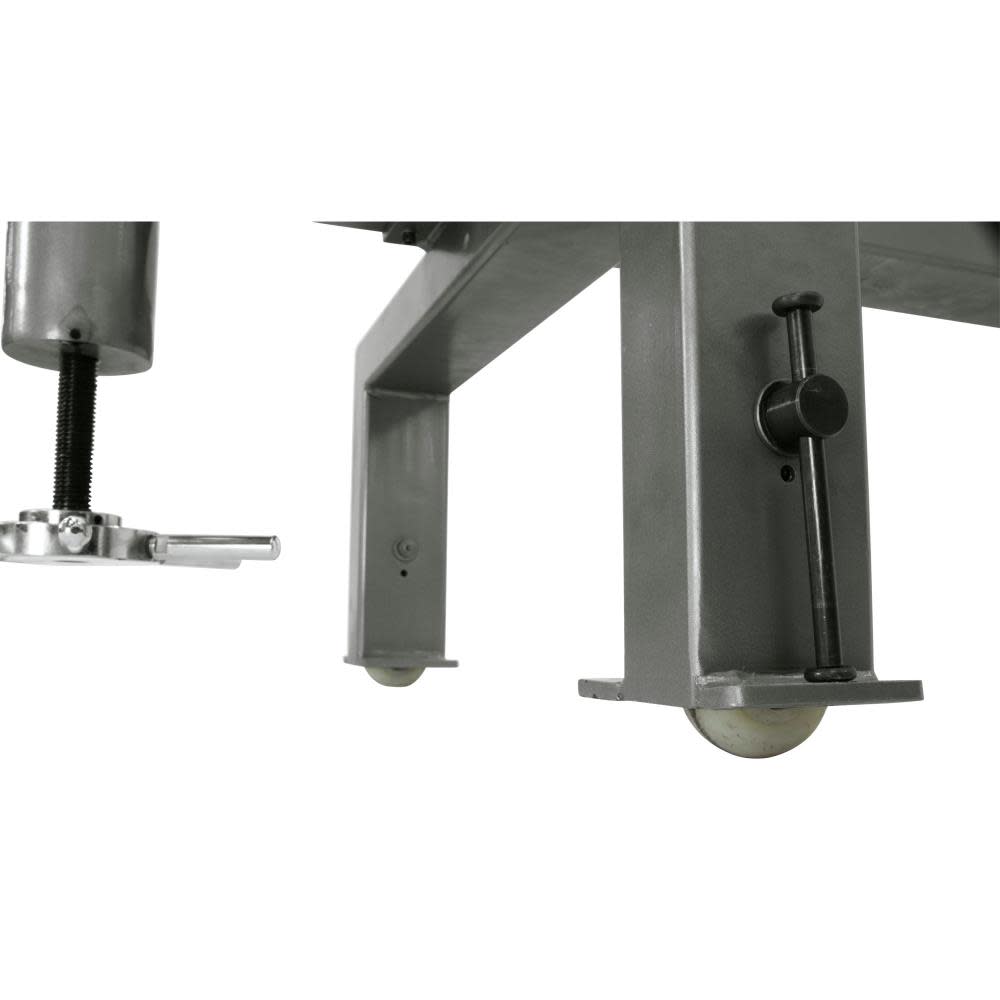

Retractable wheels make moving this machine around the shop simple
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
756151
Assembled Weight (lbs)
458
California Proposition 65 Warning Required
Yes
Color / Finish
grey/steel
Country of Origin
China
Gauge Capacity (ga)
16
Height (in)
63
Internet Product Code (IPC)
4D3BF7A8D28
Length (in)
56
Manufacturer Warranty
2 Year
Material
Frame: 4.75 inch square, 7-gauge gusseted steel tubing Wheels: Hardened Steel
Maximum Width Capacity (in)
2
Number of Rollers
13
Package Contents
13 Rollers
Package Depth
58
Package Height
64
Package Weight
575
Package Weight (lbs)
555
Power Source
Hand
Swivel Wheel
No
Weight (lbs)
458
Width (in)
28
Wire Grooves
No
