Description

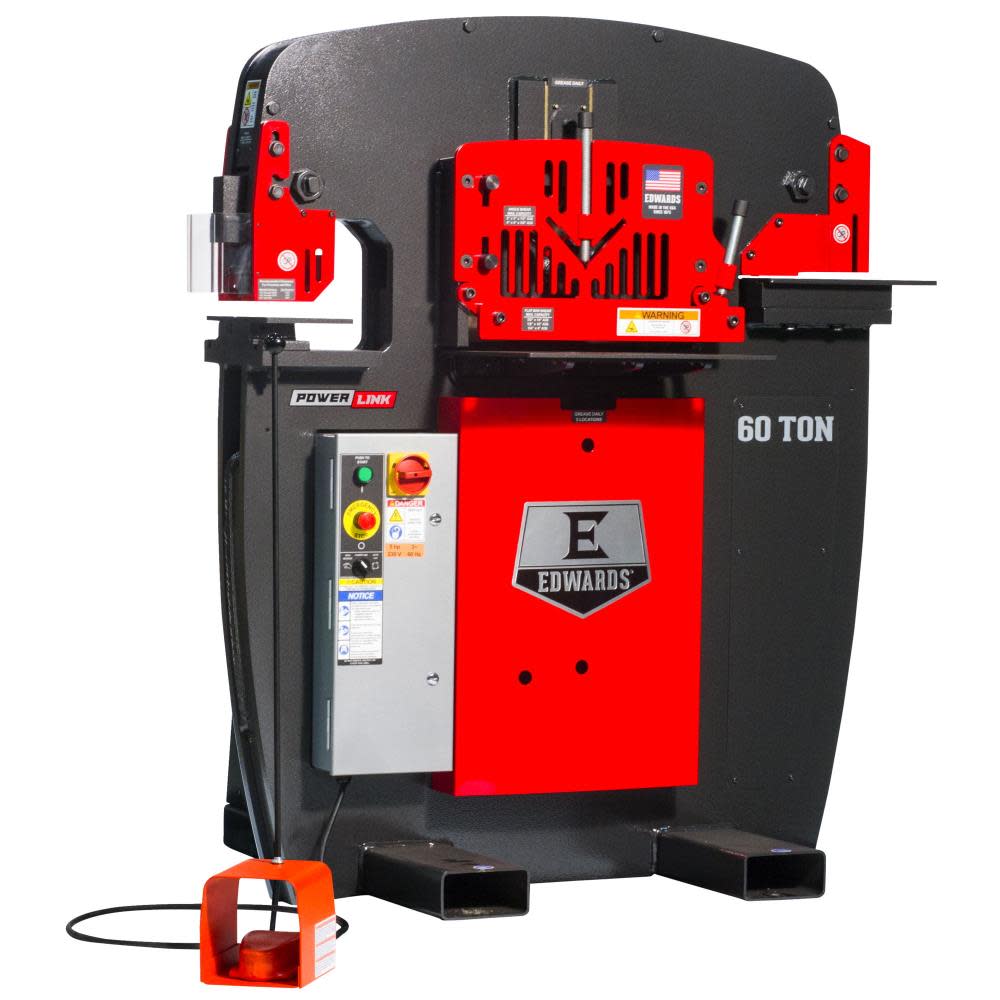

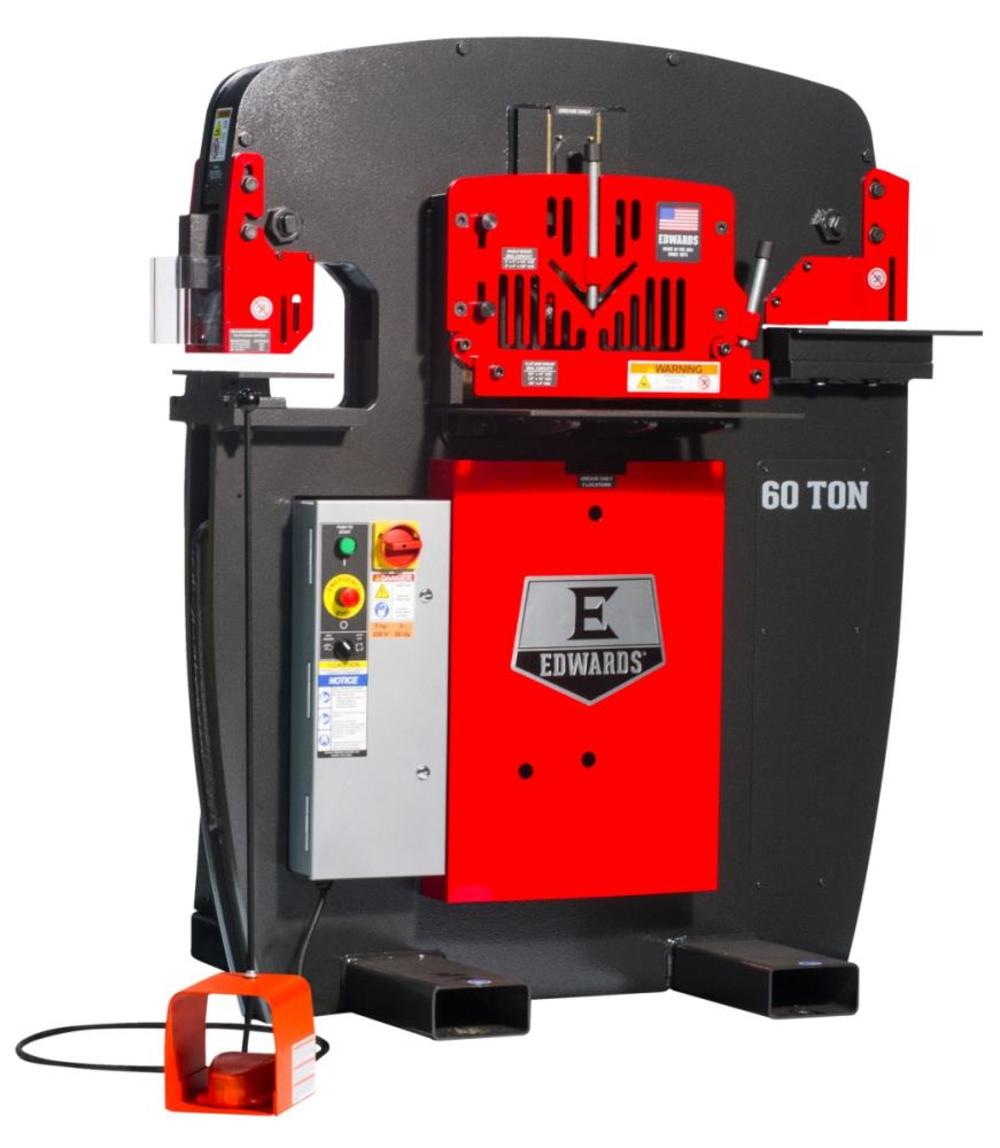

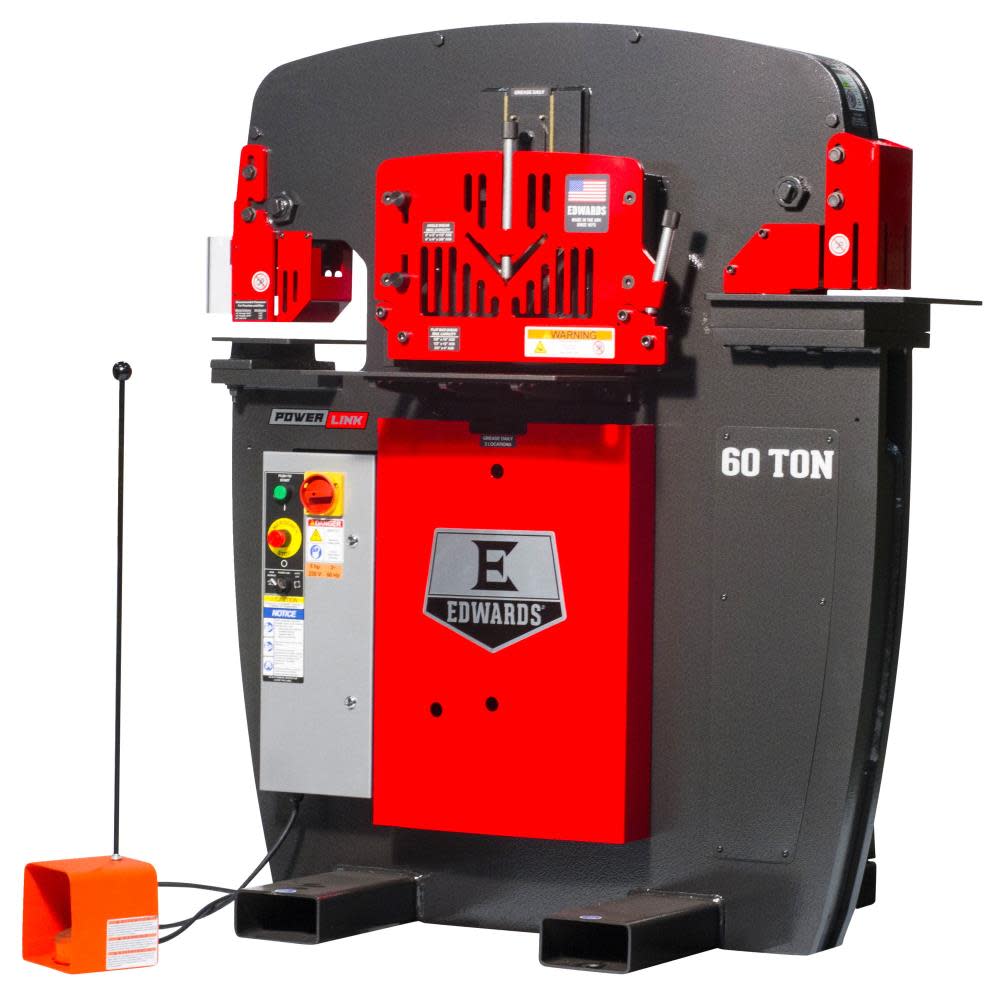

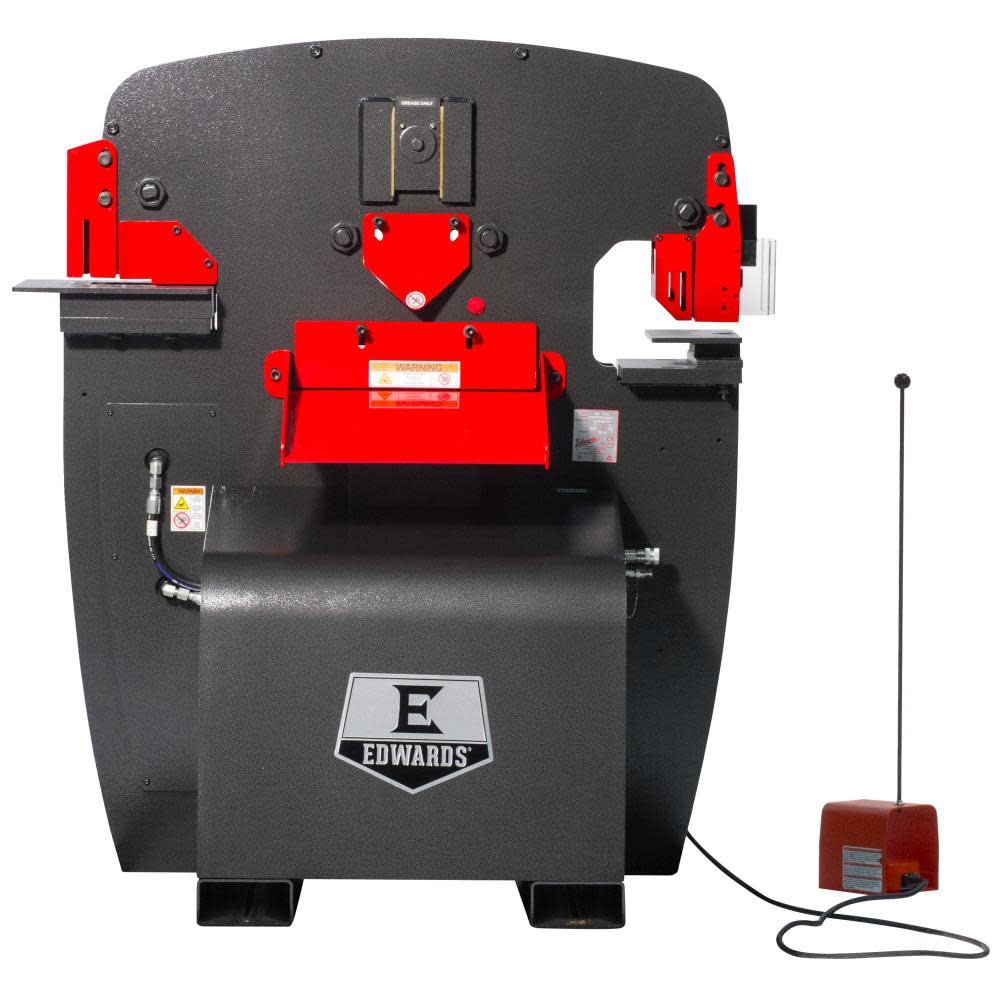

60 Ton Ironworker Single Phase 230 Volts
Our best value
four loaded workstations
dedicated coper notcher station
electric stroke control
ANSI B11.5-1988R(02) compliant
Jet/UL approved controls
the Edwards 60 ton jaws ironworker is a robust machine featuring a dedicated coper notcher station, adding strength and stability to this great tool. Standard features include a punch assembly with pedestal die table, 14 In. wide flat bar shear, angle shear and coper notcher. The optional hydraulic accessory pack allows your ironworker to act as a power source to our expanding line of innovative hydraulic accessory tools, such as the 10 ton tube/pipe bender, 20 ton shop press and 40 ton shop press.
Features
Our best value
Four loaded workstations
Dedicated coper Notcher station
Electric stroke control
ANSI B11.5-1988R(02) compliant
Jet/UL approved controls
The optional hydraulic accessory pack allows your ironworker to act as a power source to our expanding line of innovative hydraulic accessory tools, such as the 10 ton tube/pipe bender, 20 ton shop press and 40 ton shop press
The optional hydraulic accessory pack allows your ironworker to act as a power source to our expanding line of innovative hydraulic accessory tools, such as the 10 ton tube/pipe bender, 20 ton shop press and 40 ton shop press.
Specifications
Acme Tools Brand Name
EDWARDS
Acme Tools Part Number
IW60-1P230
Amperage (A)
14.0
ANSI Safety Listing
Yes
Assembled Weight (lbs)
2550.0
California Proposition 65 Warning Required
Yes
Color / Finish
See Image
Country of Origin
United States
CSA Certified
No
ETL Listed
Yes
Horsepower (hp)
5.0
Internal Supplier Part #
IW60-1P230
Internet Product Code (IPC)
64BACCBF377
Manufacturer Warranty
1 year
Maximum RPM
1725
Motor Horsepower (hp)
5.0
Motor Voltage (V)
0.0
Overall Height (in)
63.0
Overall Length (in)
45.0
Overall Width (in)
51.0
Package Contents
Notcher
Package Depth
45.0
Package Height
63.0
Package Weight
2550.0
Package Weight (lbs)
2550
Phase
Single Phase
Reservoir Capacity (gal)
7.0
UL Listed
Yes
Voltage
230
Weight (lbs)
2550.0
