Description
60 V MAX* In-Line Stud & Joist Drill with E-Clutch System Kit

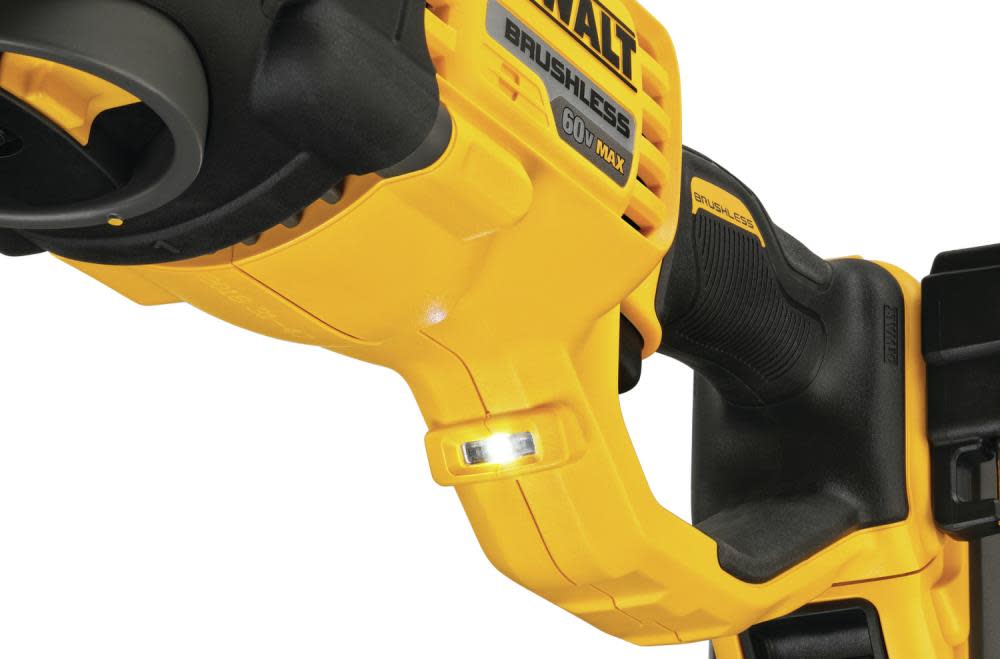

The DCD470 60 V MAX* in-line stud and joist drill is DeWalt’s most powerful drill on the market. It is designed to handle a wide range of large drilling applications. . Even with all this power the unit is designed to keep the user in control. In addition to the integral clutch, the DEWALT anti-rotation E-Clutch® system, offers technology capable of detecting the motion of the tool. This feature senses the motion of the tool and shuts it down if necessary. The red indicator LED illuminates when the E-Clutch® system is engaged.
Features

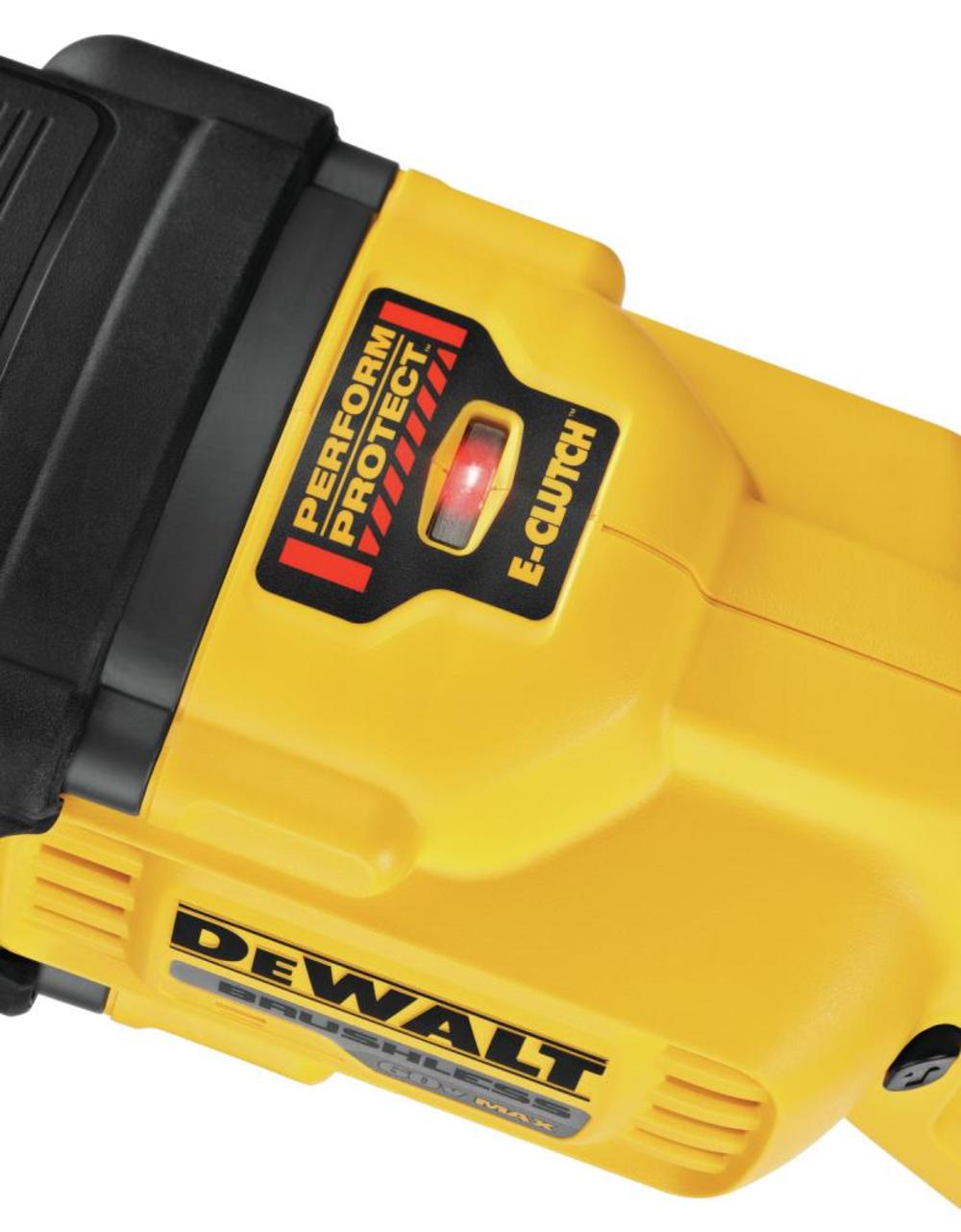

In addition to the integral clutch, the DEWALT anti-rotation E-Clutch® system, offers technology capable of detecting the motion of the tool. this feature senses the motion of the tool and shuts it down if necessary . the red indicator LED illuminates when the E-Clutch® system is engaged.
2 variable speed ranges (0-400/ 0 to 1320 RPM) to match appropriate speed to the application
Magnesium gear case to reduce weight while maintaining jobsite durability.
Power of the cord with cordless freedom
60 V MAX* Brushless motor for increase power and runtime

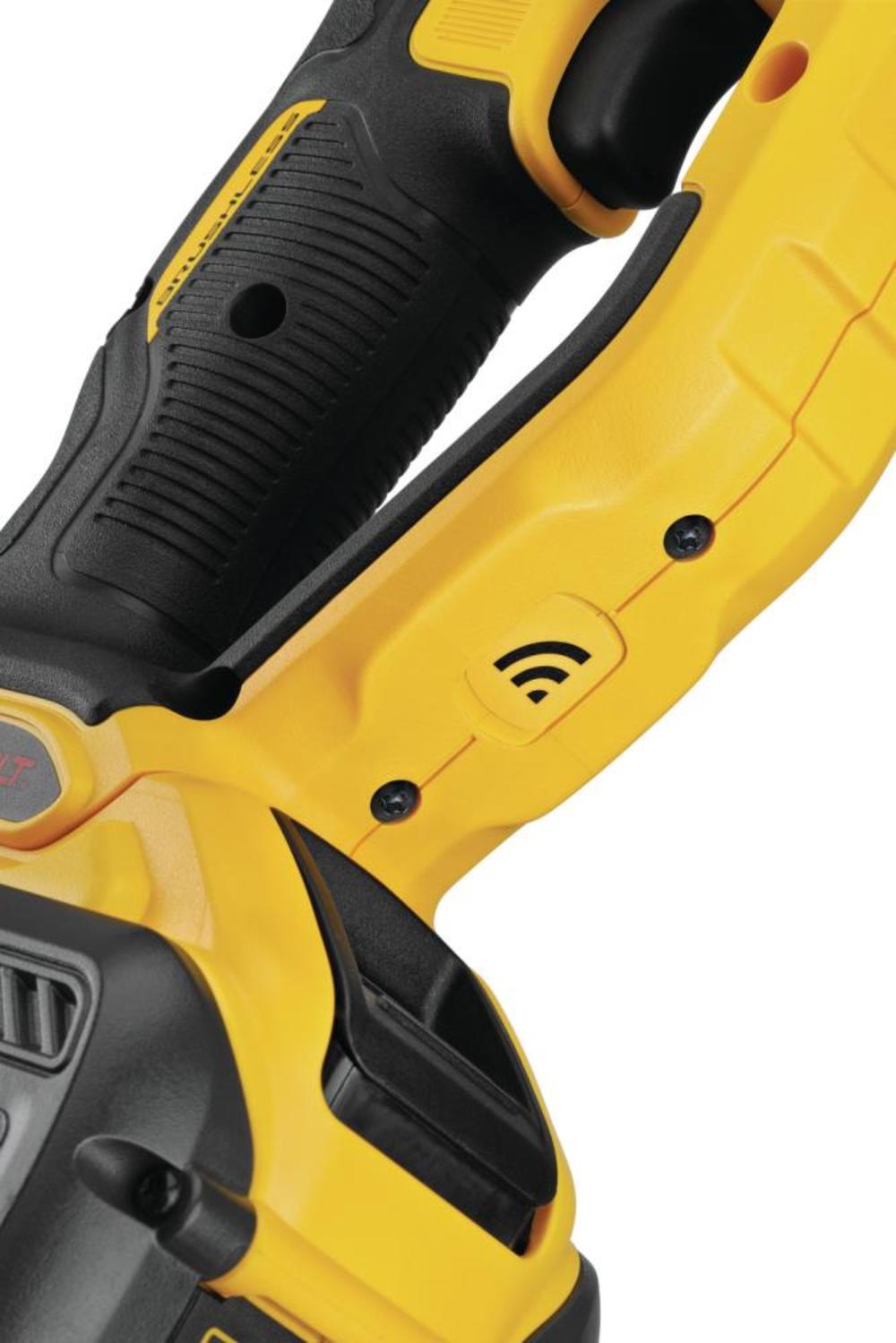

Tool connect™ tag ready. installing a DEWALT tool tag allows for tracking and locating of the drill using the DEWALT tool connect ™ app.

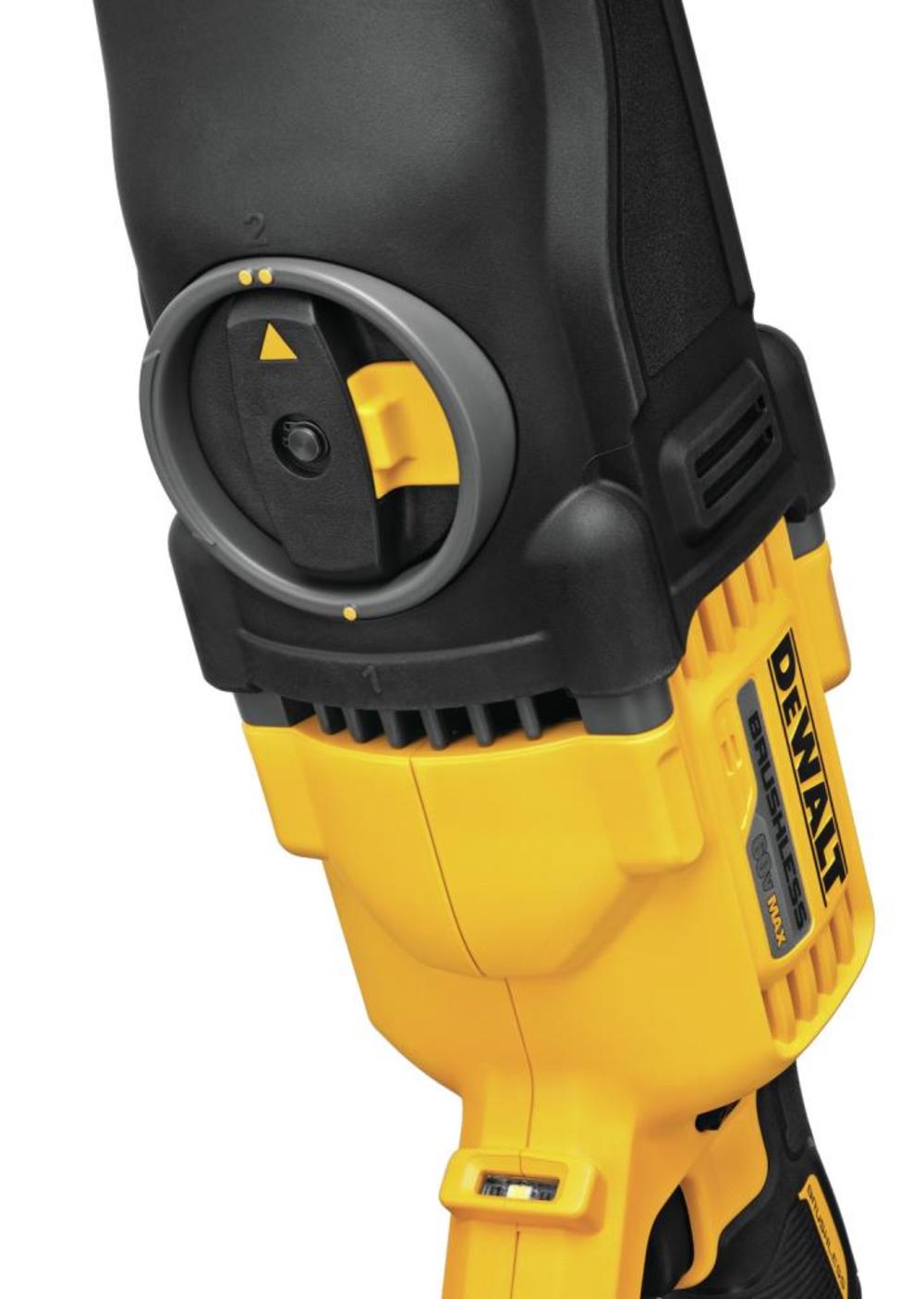

Quick-shift speed selector allows the user to easily change speeds without having to feather the trigger.
Specifications
Acme Tools Brand Name
DEWALT
Acme Tools Part Number
DCD470X1
Assembled Weight (lbs)
14.4
Battery Voltage (V)
60
California Proposition 65 Warning Required
Yes
Charger Included
Yes
Chuck Design
Keyed
Chuck Size
1/2 In
Color / Finish
Yellow/Black
Cordless / Corded
Cordless
Country of Origin
China
Drill Type
Variable Speed Drill
ETL Listed
No
Housing Material
Plastic
Internal Supplier Part #
DCD470X1
Internet Product Code (IPC)
895AC5D336D
Length (in)
21.3
Lock-on Switch
Yes
Manufacturer Warranty
3 year limited warranty/1 year free service contract/90 day money back guarantee
Maximum RPM
1320
Net Tool Weight (lbs)
14.4
Number of Batteries Included
1
Number of Batteries Required
1

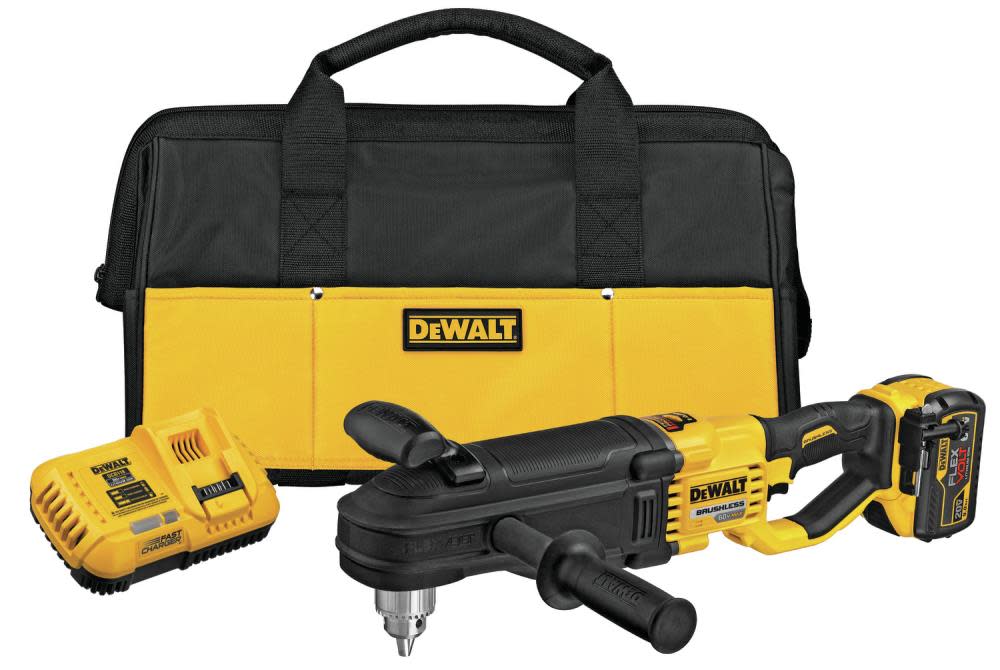

Package Contents
DCD470 (Tool); DCB609 (Battery); DCB118 (Fast Charger); 2 position side handle; Chuck Key and holder; Contractor Bag
Package Weight
14.4
Package Weight (lbs)
14.4
Powered Tool Power Source
Electric – Cordless
Reverse
Yes
Side Handle
Yes
Switch Type
Trigger
UL Listed
Yes
Variable Speed
Yes
Width (in)
6.95
