Audison Bit One HD Virtuoso Hi-Res Signal Processor

Audison BITONEHDVIRTUOSO Bit One HD Virtuoso Hi-Res Signal Processor

Just as the virtuous performer holds the absolute mastery of the instrument and the technique connected to it, the bit One HD Virtuoso features unique skills dedicated to the most ambitious OEM Integration projects and excels in the uncompromising Hi-End systems. This was made possible thanks to innovative functions born with the new software / firmware development and the upgrade of some key components in the audio signal path, which are crucial to reach new heights of listening pleasure. bit One HD Virtuoso allows the creation of an Audison Full DA HD (Full Digital Audio HD) system where the audio signal is transmitted digitally from the Hi-Res audio player to the Audison amplifiers equipped with AC / AD link inputs, preserving every nuance with maximum purity.

Key Features

• Full DA HD
  Pure digital signal transfer with a resolution up to 24 bit / 96 kHz
• Hi-Res Audio
  According to the definition of HiRes audio provided by JAS (Japan Audio Society – jas-audio.or.jp), bit One HD Virtuoso meets 24 bit / 96 kHz native processing requirement.
• Analog Device™ DSP
  Analog Device SHARC™ series chip with floating point precision, to reach the highest audio quality.
• Fir Filters
  A dedicated firmware release enables the user to process up to 9 digital channels with crossover FIR filters. This sound processing mode, much more demanding in terms of calculation resources, ensures a leadingedge in-car listening experience.
• RVA (Remote Volume Aux)
  This exclusive technology provides the ability to select an auxiliary source (I.e.: a HI-Res audio player or auxiliary wireless interface connected by digital inputs) and adjust its volume via the OEM Head Unit, offering full support to the management of the car priority signals such as parking sensor alerts, GPS messages, phone and vocal commands whilst music is played through the auxiliary source.
• USS Technology
  USS technology allows bit processors to work with headunits featuring the “speaker load detection” circuit
• DE-EQ
  De-equalization function to “flatten” any equalization applied by default by OEM sources.
• DE-Time
  Input delay compensation of time-delayed factory outputs prior to signal summing.
• DE-Phase
  Compensation of the overall system phase to recreate the original signal, even in case of OEM sound enhancement algorithms.
• Polarity-Check
  High level inputs polarity check and automatic correction in case of inversion.

Features

• Audison Bit Tune Auto Tuning
  Audison bit Tune is the auto-calibration system for bit One HD Virtuoso for the setup of basic parameters (time alignment, equalization, levels, etc.), ensuring a correct acoustic result in a very short time. The bit Tune automatic routine also includes the diagnosis of common connection “errors” (channels/phase inversion, no signal from a channel/cable, etc.), to set the specialist free from his “routine” work and allow him to focus on the art of “fine-tuning” while listening.
• Connectivity

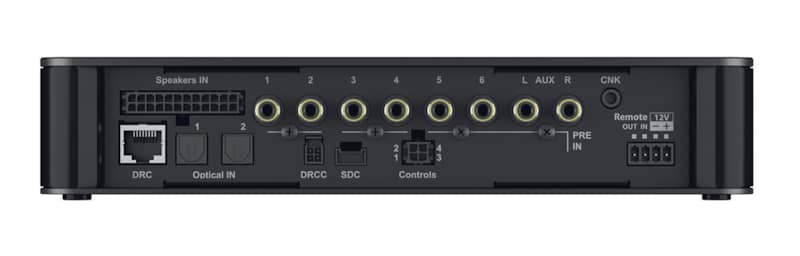

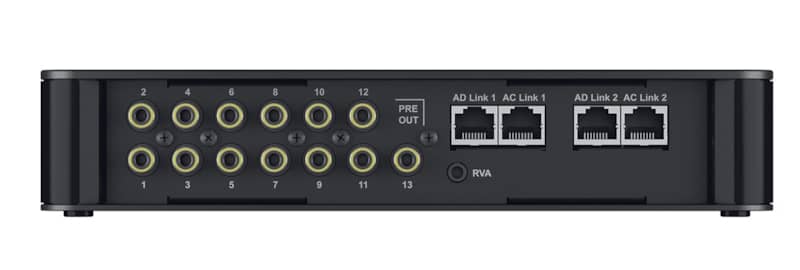

  The bit One HD Virtuoso is equipped with two optical digital inputs (TOSLINK) to connect the bit DMI interface to the processor simultaneously, allowing the user to extract the digital audio signal from an OEM system equipped with factory MOST bus and from an Hi-Res player. The 12 analog along with 2 auxiliary inputs make it compatible with any OEM system and the 13 output channels, both analog (RCA) and digital equipped with double AD LINK connector, provide the ability to create very complex full-active systems.
• OEM Integration Special Functions
  The bit One HD Virtuoso further improves its integration level with OEM head units, offering full support to the management of the car priority signals such as parking sensor alerts, GPS messages, phone and vocal commands whilst music is played through an auxiliary source such as a Hi-Res audio player. The functions listed below further enhance the processor’s control capabilities.
  • RVA (Remote Volume Aux)
    This exclusive technology allows to select an auxiliary source (ES: an HI Res audio player connected by digital inputs) and adjust its volume via the OEM Head Unit.
  • Controls
    External service terminals to select the presets as well as the OPTICAL 1, OPTICAL 2 and AUX inputs.
• DRC MP – Digital Remote Control Multimedia Play
  The DRC MP supplied with the bit One HD Virtuoso features a reduced size and a total black look with possibility of customizing the RGB light of the volume control as well as the keys. A Joystick has been added to the volume knob, providing the ability to intuitively browse the menu, adjust the display colour and brightness and also control a bit Play HD that may be connected to the processor.
  The display features black background with white characters, for maximum readability also at daytime, and a brightness sensor, for the automatic setup of the Night&Day function.
