Baileigh BB-4816M Magnetic Sheet Metal Brake 220V 1 Phase 48″
This sheet metal brake can bend boxes or pans to almost any depth since it doesn’t rely on conventional finger depths.
Features

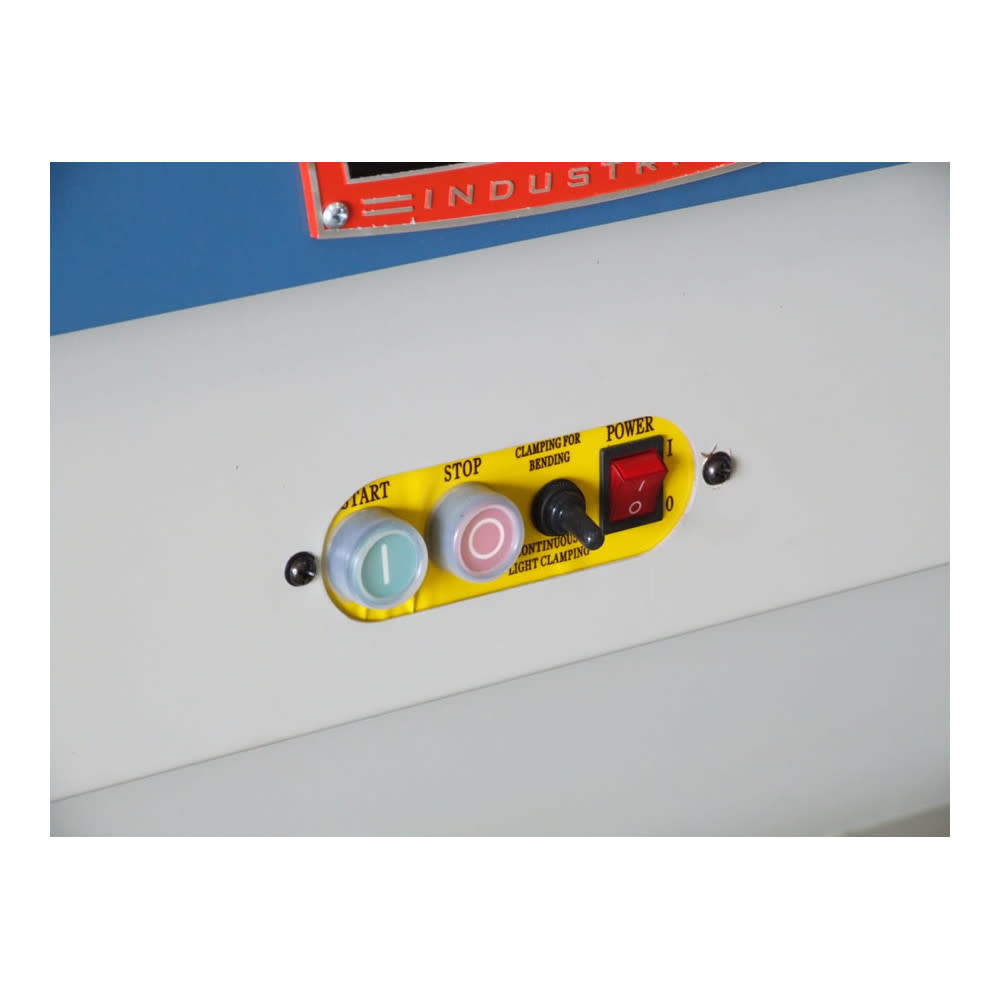

Runs on 220V 1 Phase power and will work at virtually any site
48 In. (4 Ft.) length with a maximum capacity of 16 Gauge mild steel

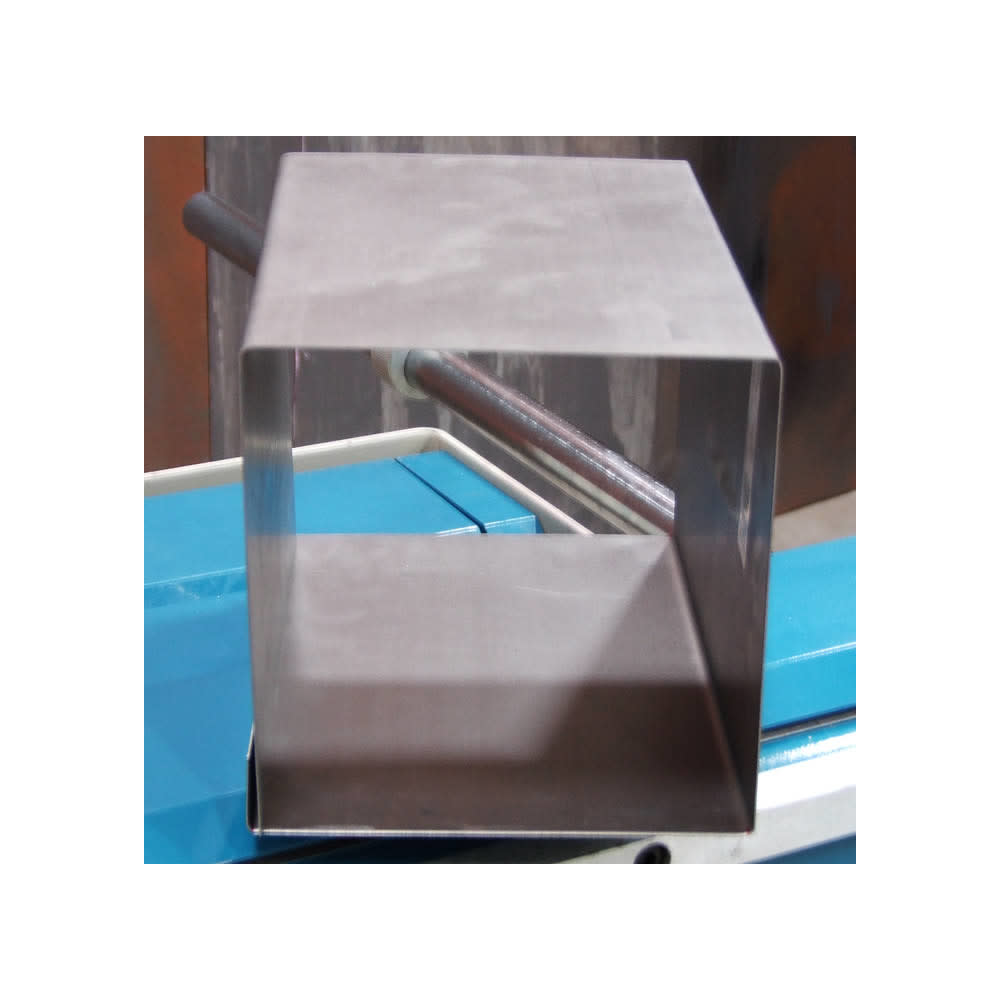

The Brakethrough open-ended design allows you to create enclosed ducts and shapes impossible to make with a traditional box and pan brake
6 Ton magnetic power is consistent across the entire beam, allowing for crisp bends even in the middle of the brake
Scaled stroke angle control lets you deliver repeatable bends time after time

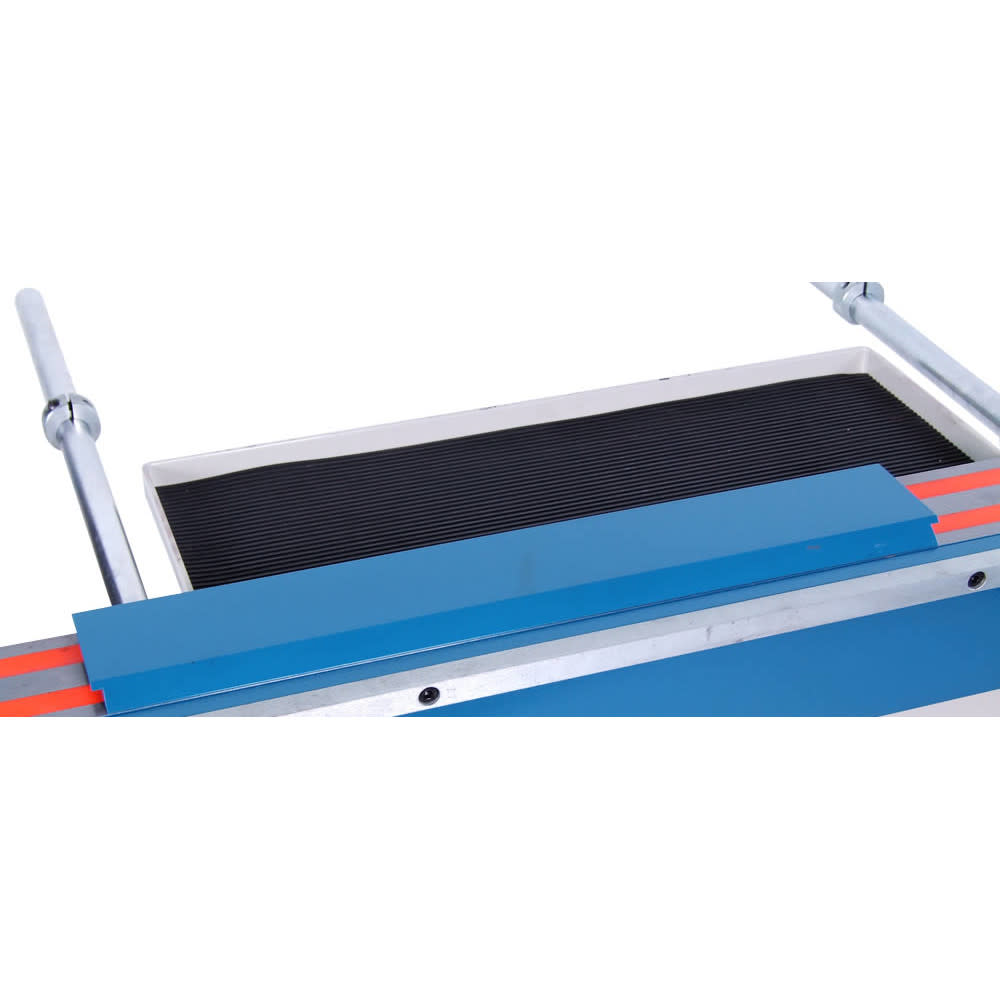

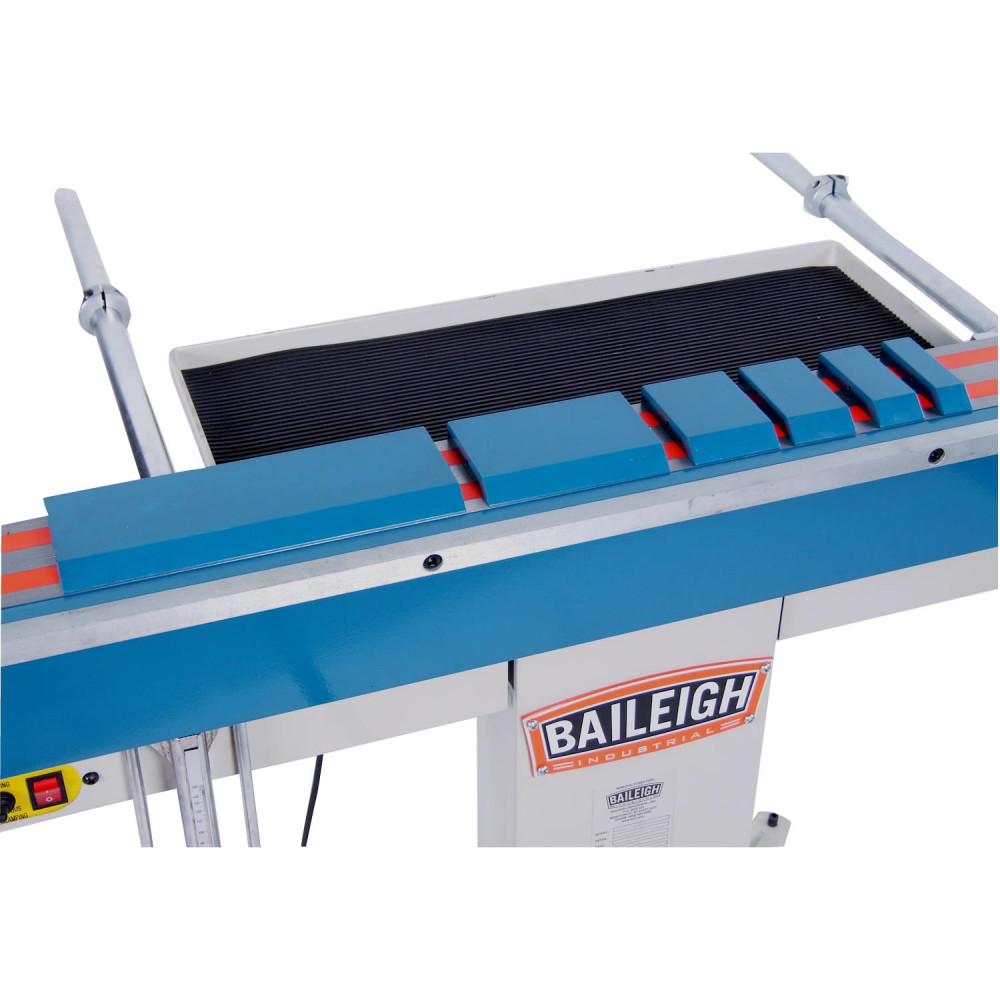

You can set up the mild steel clamping bar with straight bars (of various widths if you had very tight boxes to make) for straight bends or segmented clamping bars for box and pan applications
Blade gap adjustment on the clamping bars lets you work with sheet metal of different thicknesses
You can remove the bottom leaf’s bending extension for the tightest bend dimension between bends of 0.625 In.
Comes with product supports and adjustable back gauges for production runs

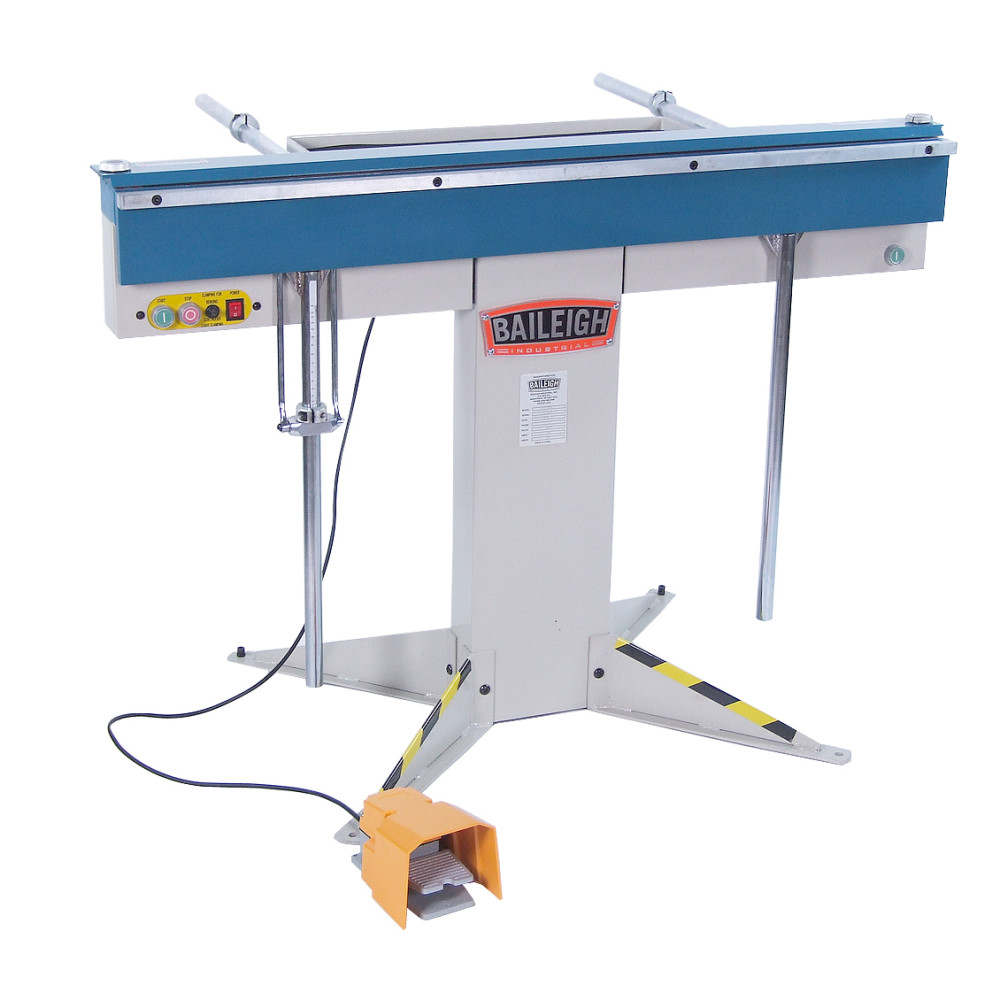

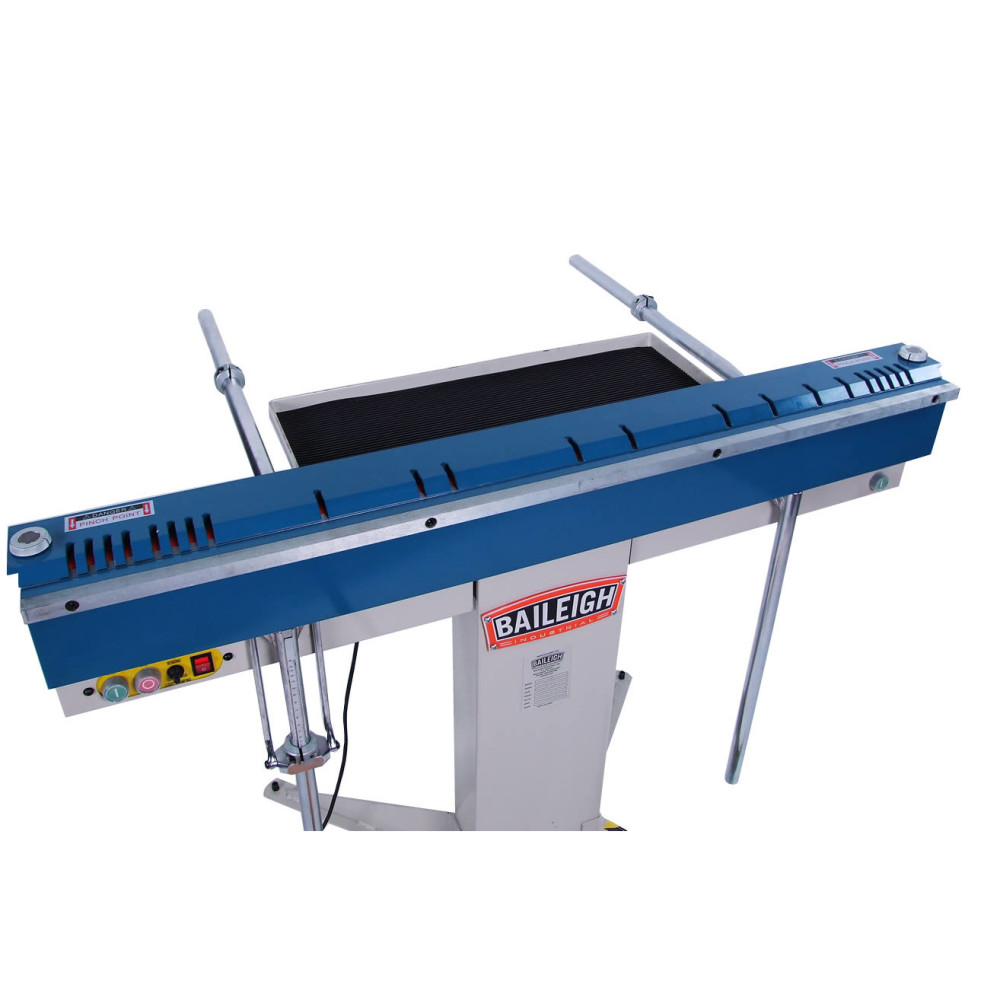

Baileigh BB-4816M 220V 1 Phase 48 In. Manually Operated Magnetic Sheet Metal Brake
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1000490
Assembled Weight (lbs)
500
Bending Length Capacity (in)
48
Country of Origin
Taiwan
Gauge Capacity (ga)
16
Material
Mild Steel
Package Contents
48 In. Magnetic Sheet Metal Brake
Package Depth
57
Package Height
15
Package Weight
500
