Description

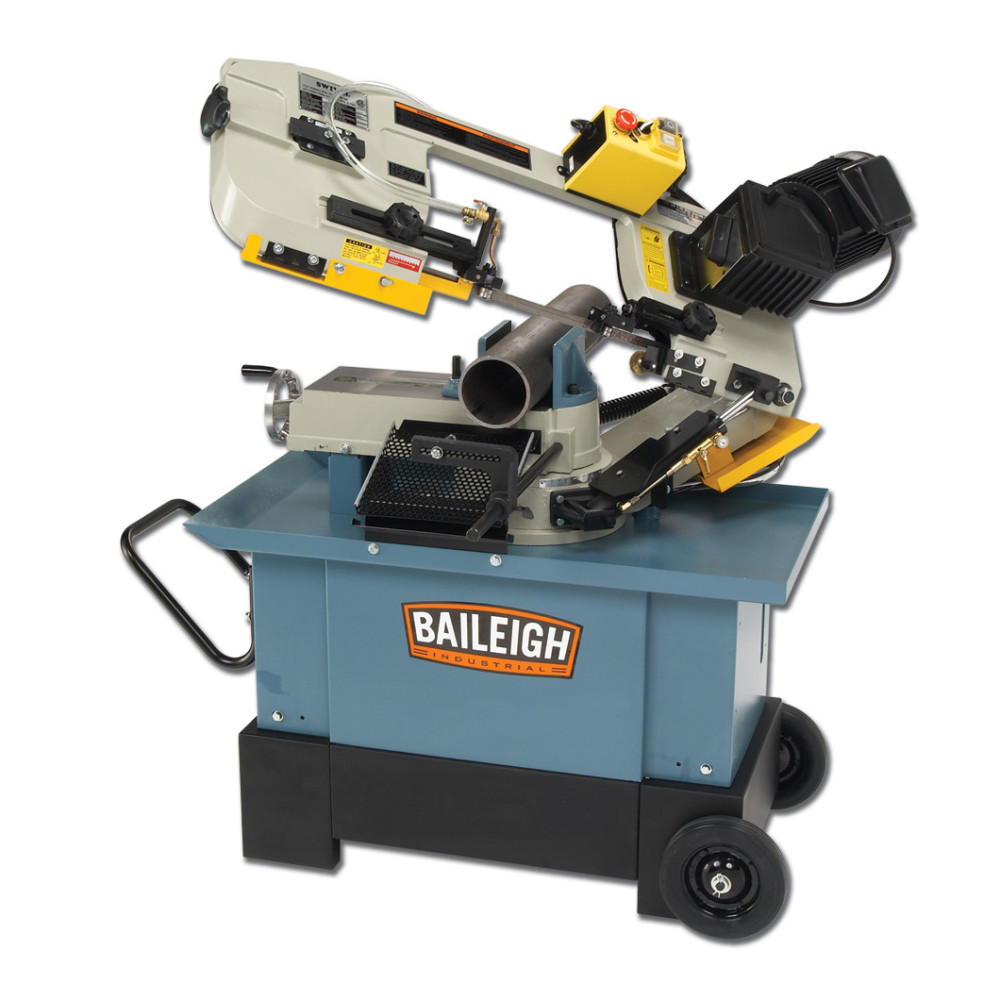

Baileigh BS-712MS Band Saw Metal Cutting 120V 1 Phase Manual
The BS-712MS as a horizontal band saw or a vertical band saw. This model has the same capacity as our BS-712M, but with a swiveling head.
Features
The BS-712MS horizontal vertical metal bandsaw is recommended for any shop, home or work, where space is at a premium
Powered by 120V 1 Phase power, so you can run it just about anywhere, capacity of 7 In. OD round and 7 In. x 10-1/4 In. rectangle in horizontal position (for traditional cutoffs) at 90 Deg
Accepts standard 0.75 In. wide blades, Choose from 3 cutting speeds – 125, 215, and 270 Fpm
Cast iron head and bow, machined to exacting tolerances, ensure proper alignment during the cutting process and help the saw last for years
Operate the machine in vertical position (for precise shape cutting) just by lifting the bow and locking it in place

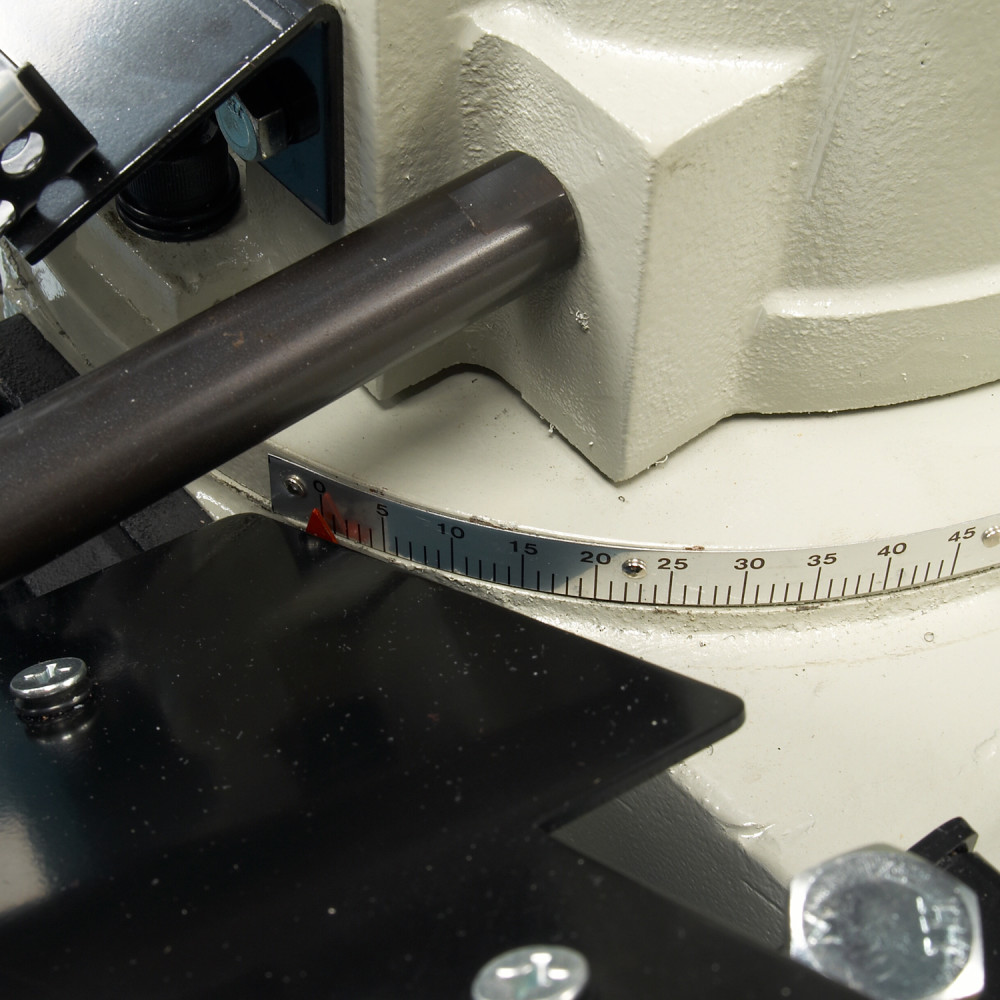

Swivel head for mitering allows for faster production times and less waste than you’d get with a moving vise
Pair of adjustable blade guides, attached to the saw head along with 8 sealed ball bearings, maintain alignment and increase the life of the blade
Fully-welded steel plate framework keeps the machine stable and gives it the structural strength to tackle its maximum capacity

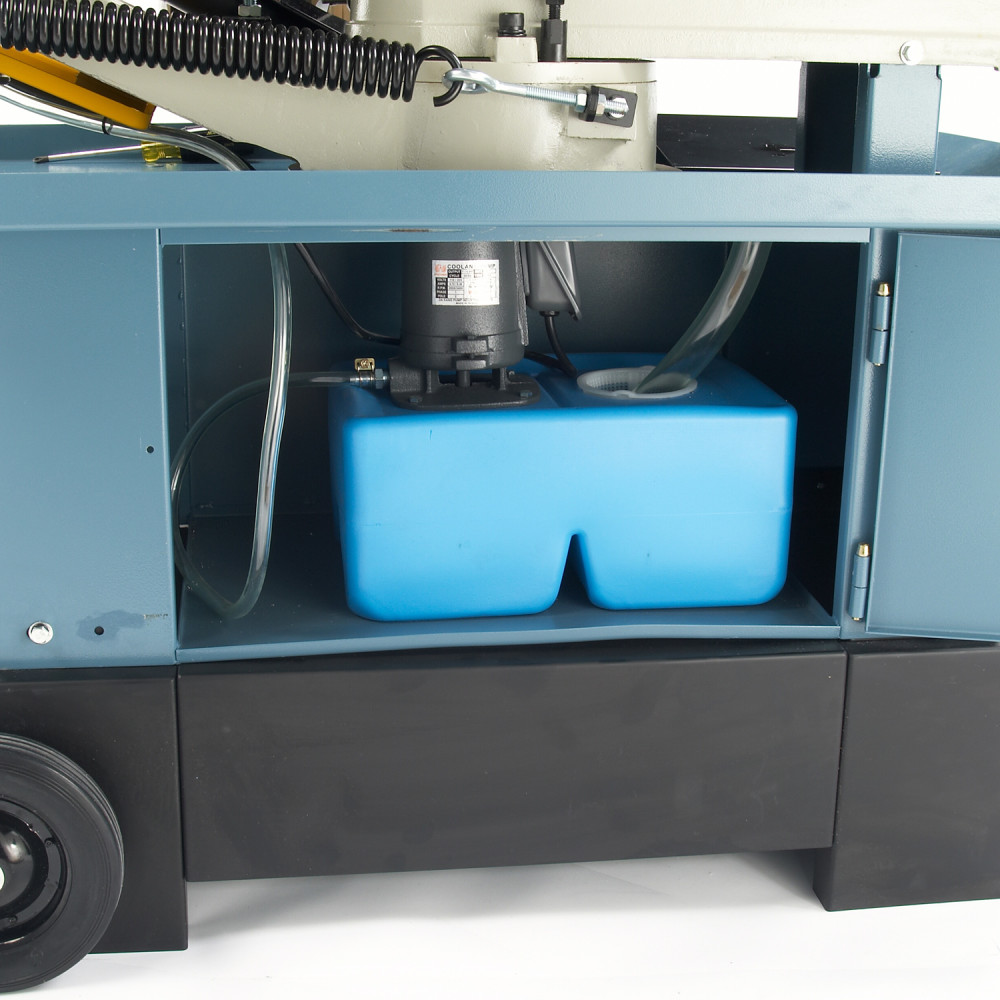

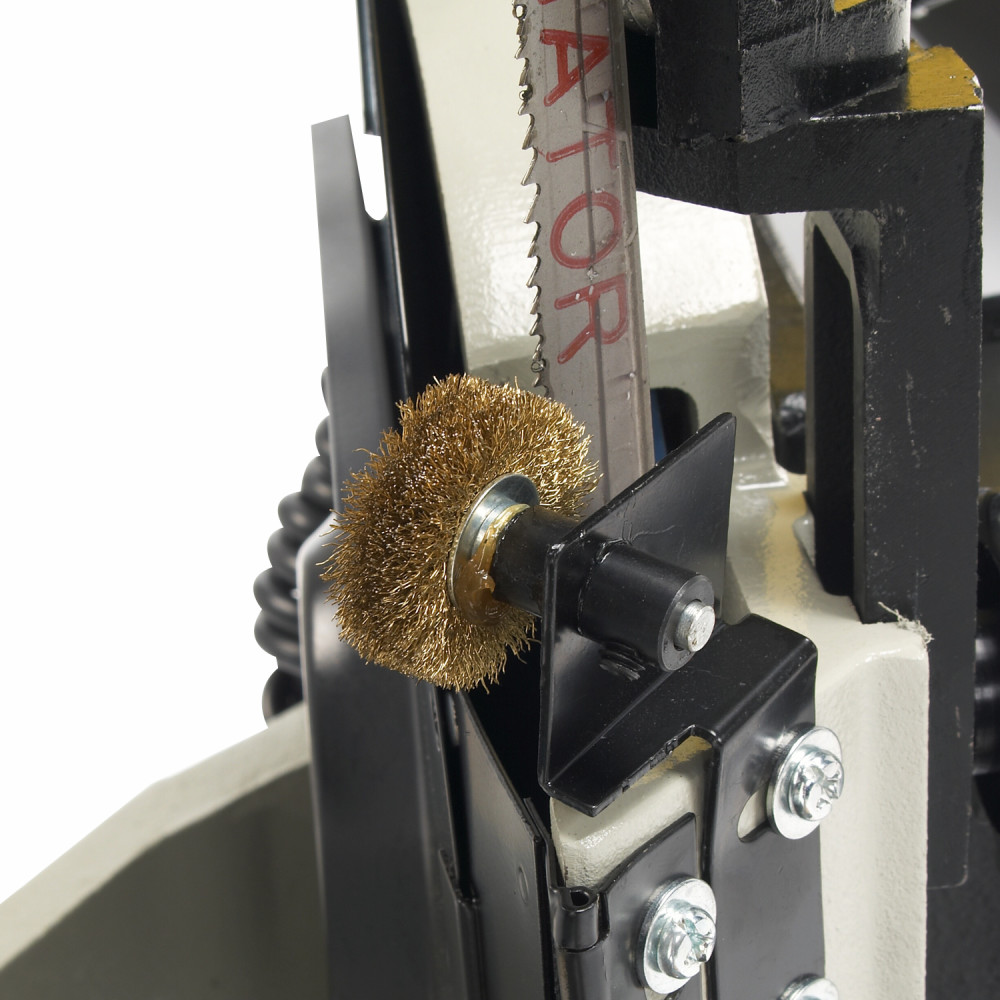

Wheels on the base make this saw easy to move and store, comes standard a flood coolant system, often considered an upgrade by other brands, and a chip removal brush
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1001684
Assembled Weight (lbs)
530
Band Saw Frame Material
Steel
Blade Guide Type
Bearings
Cordless / Corded
Corded
Country of Origin
Taiwan
Cutting Capacity Height (in)
Rectangular (90 Deg x 45 Deg x 45L Deg): 7 In. x 10.23 In. x 4.72 In. x 4.13 In.; Round (90 Deg x 45 Deg): 7 In. x 4.33 In.
Horsepower (hp)
1
Maximum Blade Length (In)
92.91
Maximum Blade Width (In)
0.75
Maximum Feet Per Minute
270
Minimum Feet Per Minute
125
Package Contents
Band Saw
Package Depth
60
Package Height
48
Package Weight
530
Phase
1
Speeds
3
Stand Included
No
Table Height (in)
23
Table Height From Floor (In)
23
Variable Speed
Yes
