Description

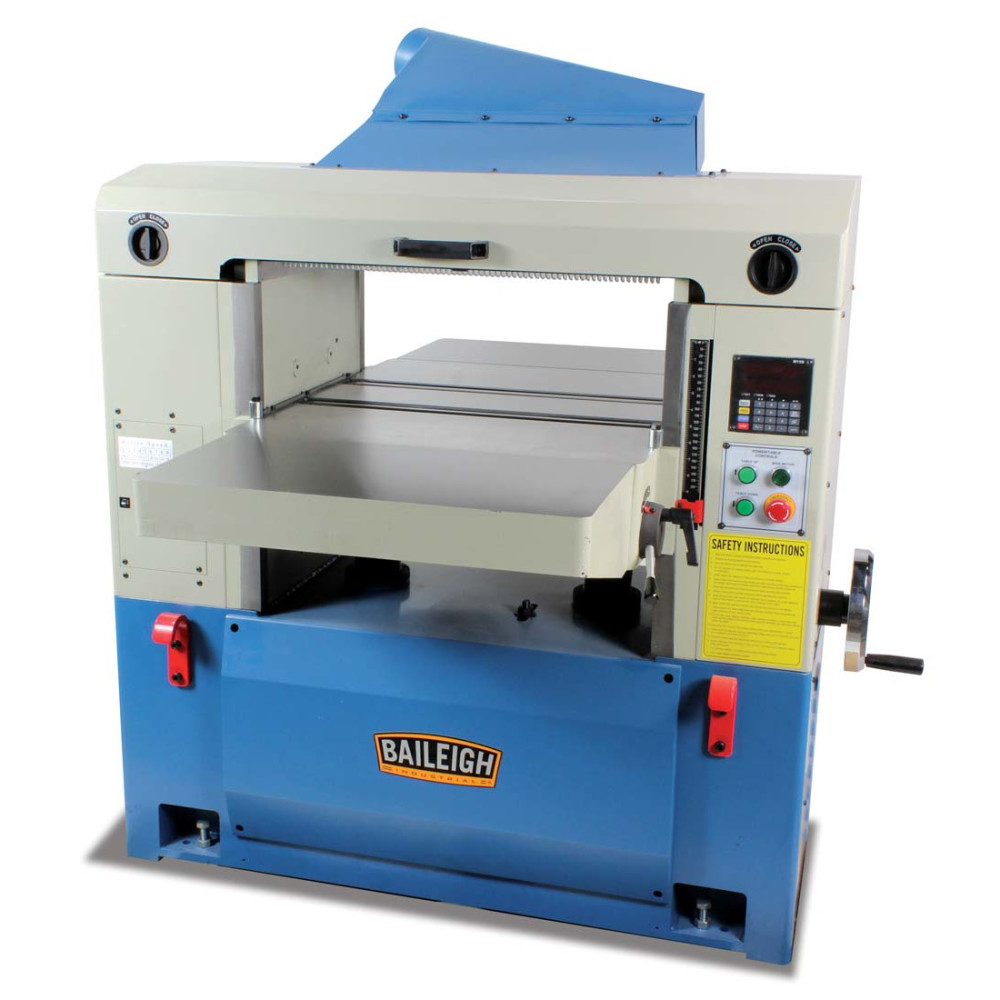

Baileigh IP-2509-HD Heavy Duty Planer 220V 1 Phase 10HP 25″
Designed for fast, consistent, low-effort production, this 25 In. industrial planer lets you set the bed height through a programmable logic controller. No more turning a handwheel to find your thickness!.
Features
10HP motor has enough muscle to smooth full 25 In. boards, spiral cutter head (included) spins at 5000 Rpm
Rows of rotatable carbide blades make the spiral cutter head last much longer and work more quietly than a straight-knife cutter
Runs on 220V 1 Phase power, so you can use this sophisticated machine in almost any shop, can smooth off up to 0.25 In. of material at one time
Variable speed from 20-30 fpm, so you can finetune to get the exact speed you need for your material and finish
25 In. x 32 In. main cast iron table expands to an even larger 25 In. x 57 In., supporting your material and helping you create straight, smooth boards

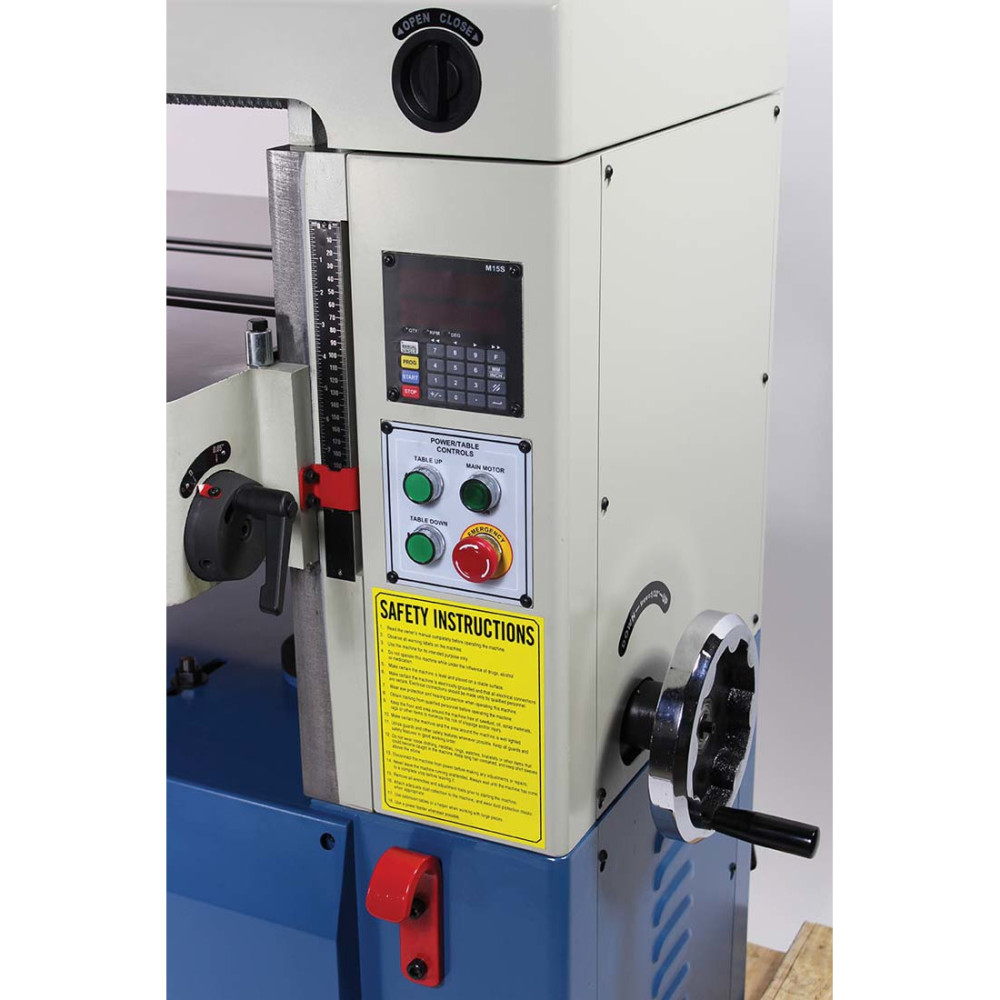

Programmable controller makes it simple to set the height, just enter what you want, and the bed automatically moves to that setting, controller includes automatic backlash compensation to produce exact, repeatable thicknesses

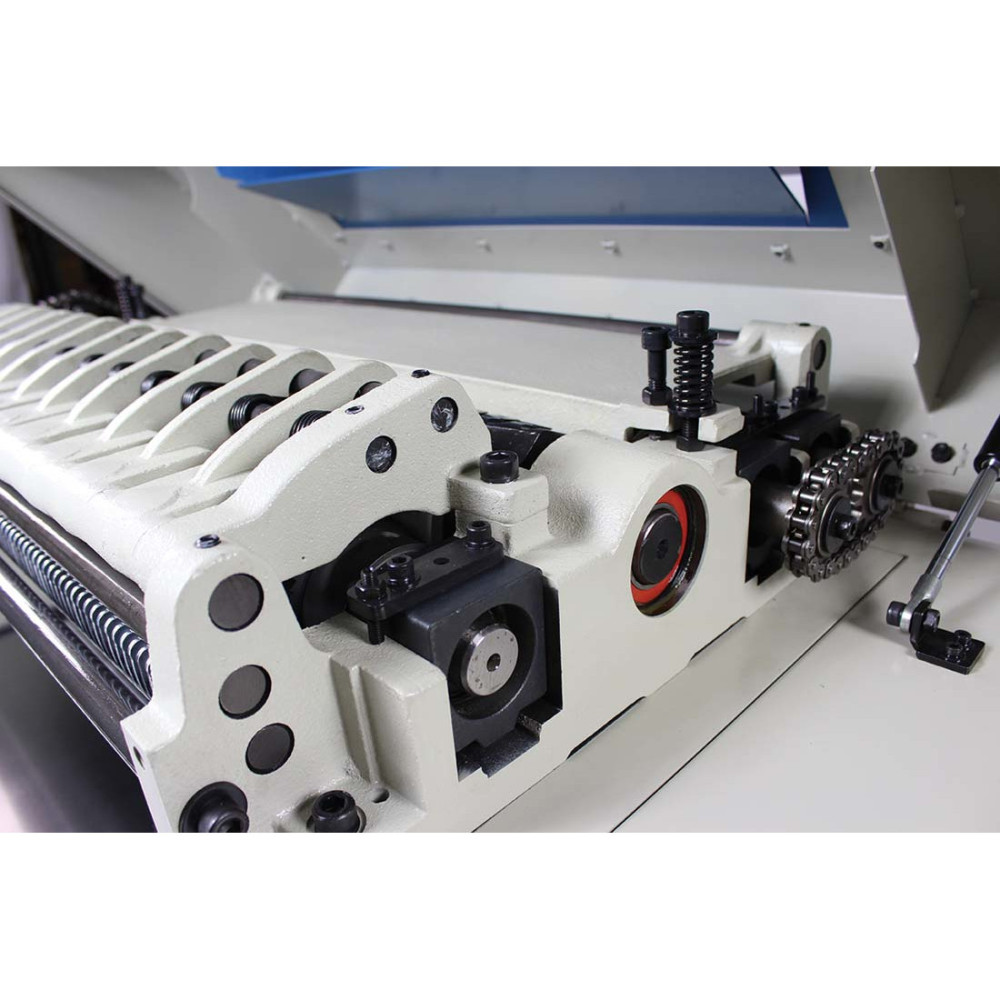

Segmented steel infeed roll allows you to smooth multiple boards with different heights at once, increasing your productivity, durable dual steel outfeed roll moves boards along to the cutting head
You can set the quick-adjust bed rolls high to reduce friction on rough-sawn stock, or adjust them lower for straighter, smoother results, segmented chip breaker prevents large chips or strips of wood from clogging up the machine or your dust collector
Solid iron pressure bar applies even force across the boards to avoid chipping, anti-kickback fingers grip the material so it’s less like to shoot back out if there’s a problem at the cutter head
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1004942
Amperage (A)
0.0
Assembled Weight (lbs)
1760
Bench or Stationary
Stationary
Blade Count
5
Blade Cutting Material
Carbide
Cordless / Corded
Corded
Country of Origin
Taiwan
Cutter Head Type
Spiral
Depth Measurement System
Yes
Feed Rate/s (Ft/Min)
20-30
Housing Material
Cast Iron and Steel
Integrated Chip Management
Yes
Maximum Board Thickness (in)
9
Maximum Cutting Depth (in)
0.25
Maximum RPM
5000
Maximum Width Cutting Capacity (in)
25 in
Motor Horsepower (hp)
10 HP
Package Contents
Heavy Duty Planer with Spiral Cutter Head
Package Depth
67
Package Height
60
Package Weight
1760
Reversible
No
Set / Individual
Individual
Variable Speed
Yes
