Description

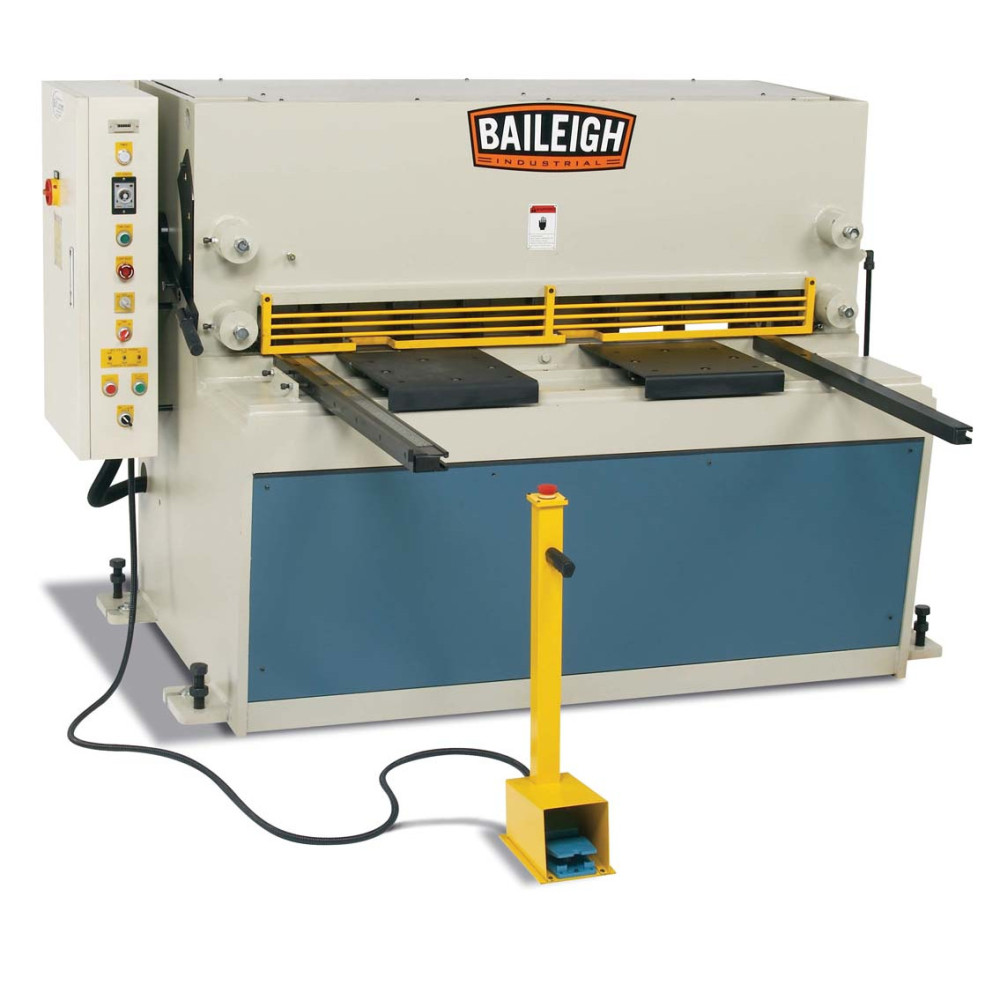

Baileigh SH-5203-HD Mild Steel Hydraulic Shear 52″ 3 Gauge
We build this hydraulic sheet metal shear with only the best components to ensure that it will last for many years. The adjustable blade gap and rake angle improve cut quality and minimize burr.
Features
1/4 In. mild steel maximum capacity, 52 In. shearing length, 15HP motor runs on 220V 3 Phase power

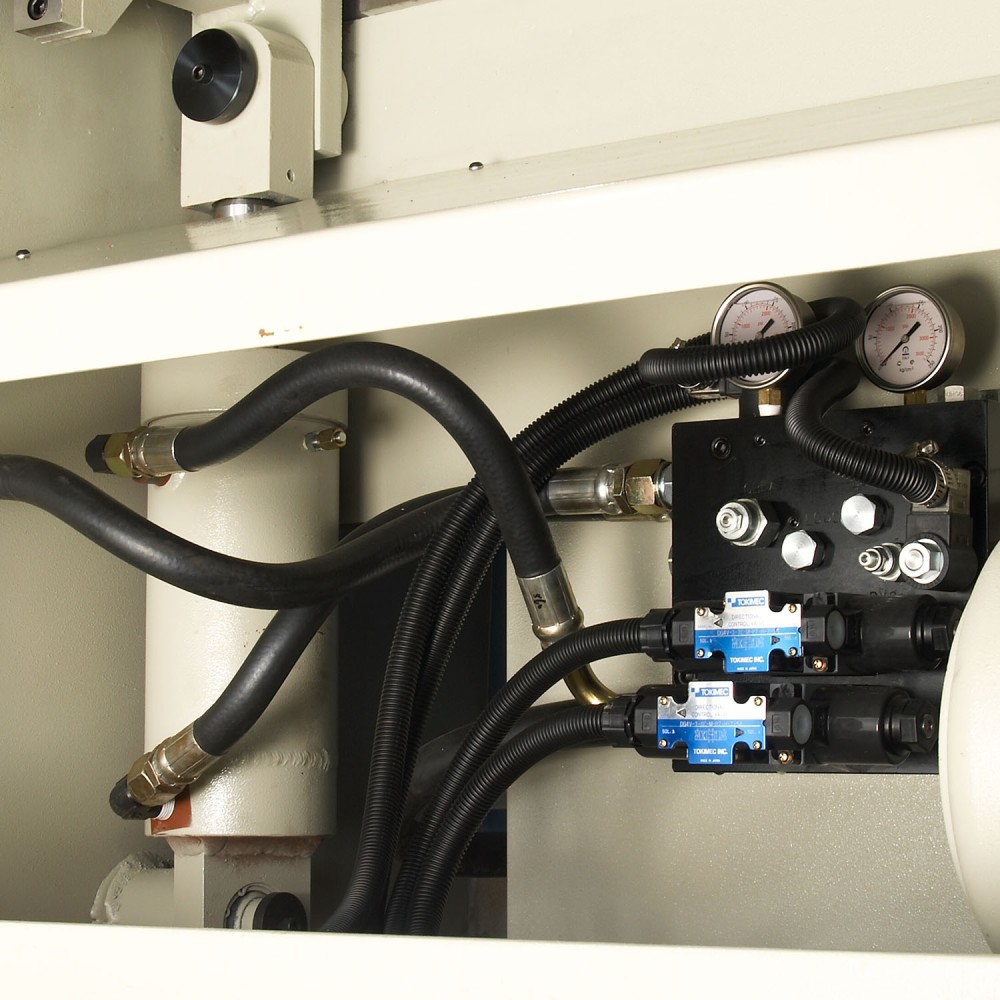

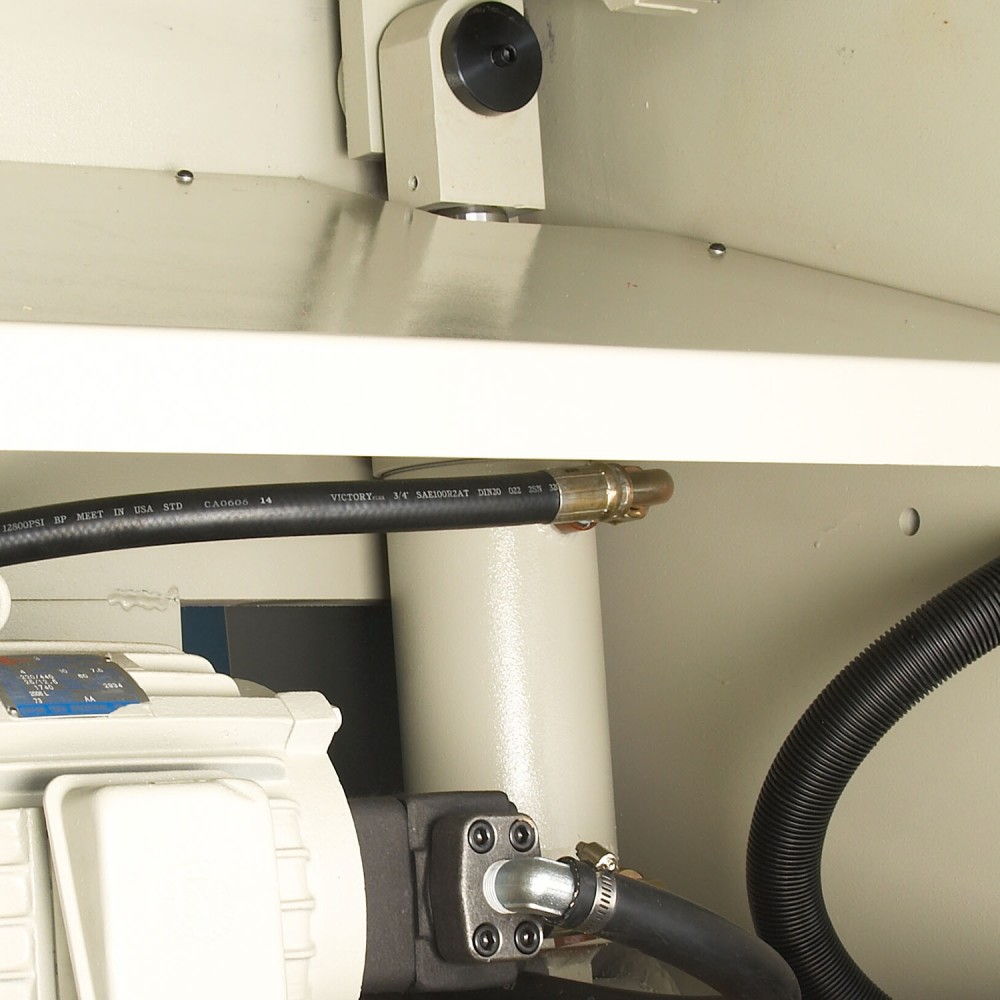

Industrial-grade hydraulic system can take anything you throw at it

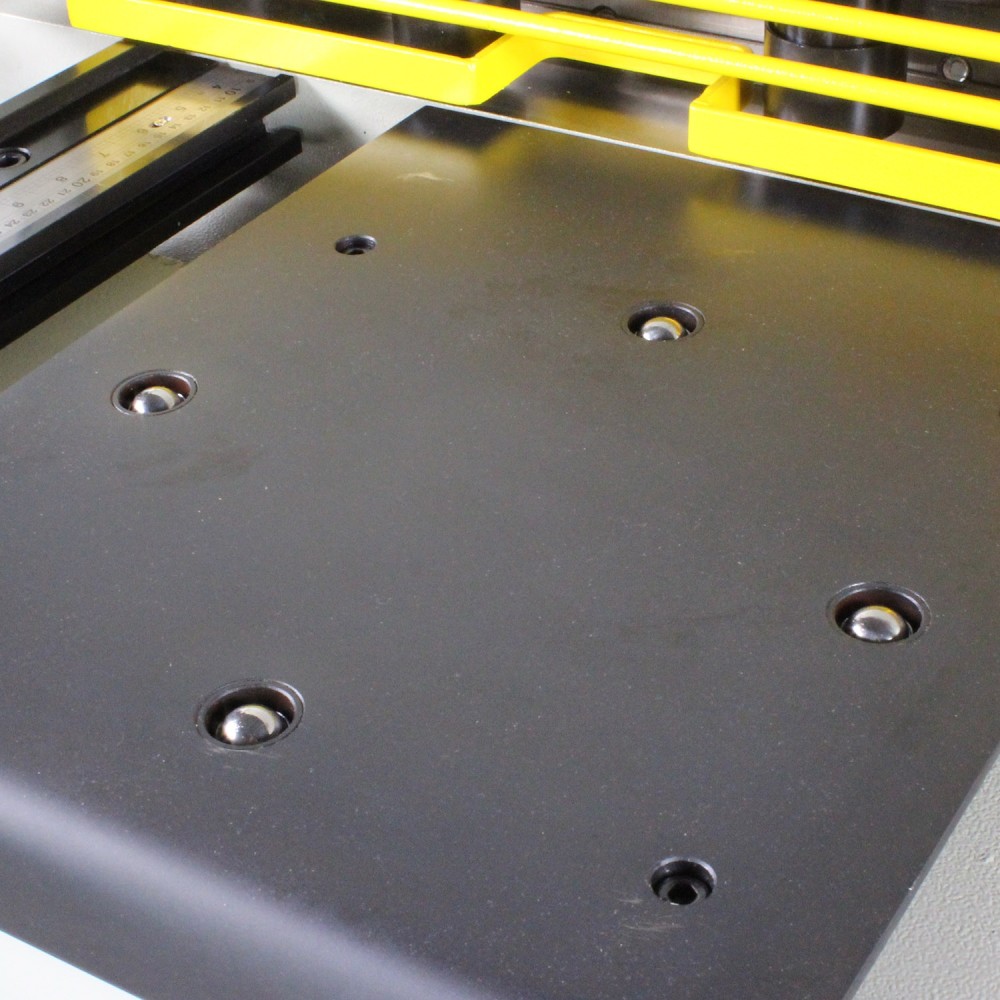

Heavy support arms keep your material square to the blade

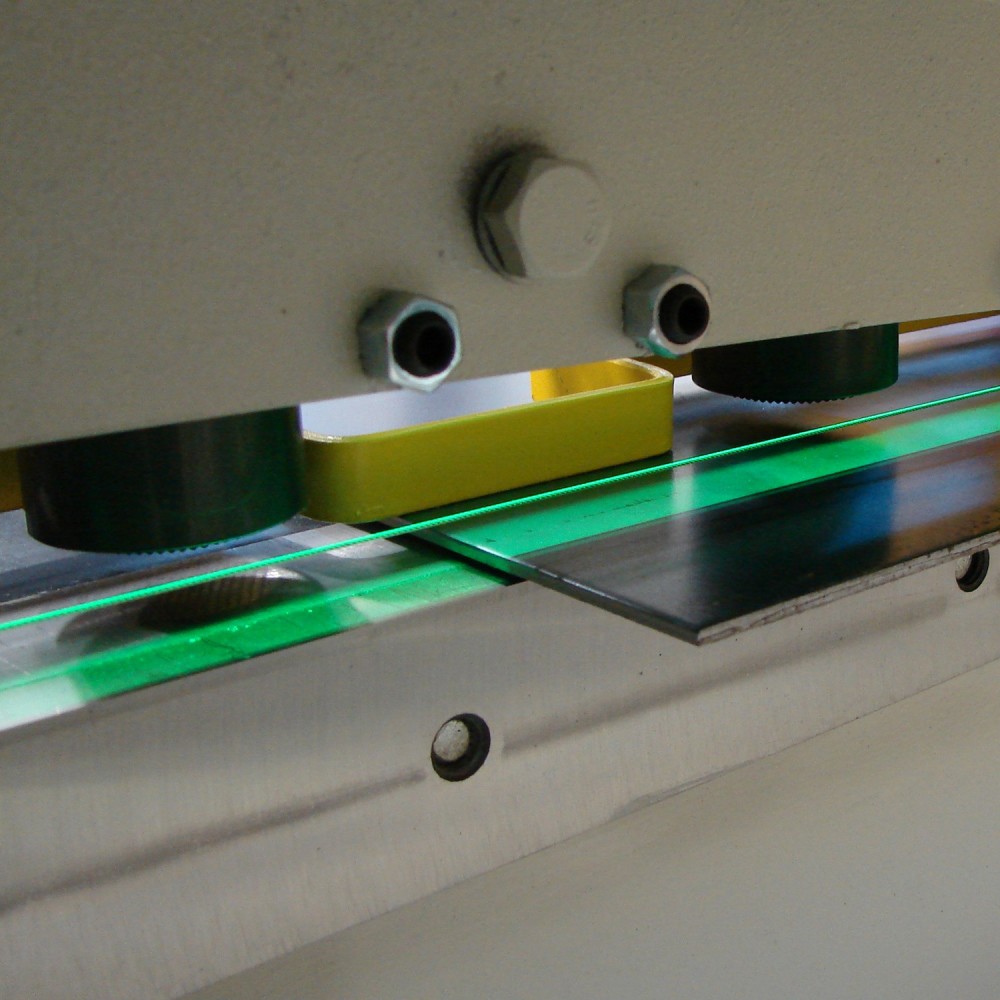

Easy to operate – just press the foot pedal. Hydraulic hold-downs grab the material to ensure a straight cut, then the blade drops
Jog mode – Inching the blade down to the material, Single cycle mode – One cut for one pedal push, Automatic cycling mode – Continuously cutting for production runs
Control panel includes rake angle adjustment, jog/run/stop controls, and production counter

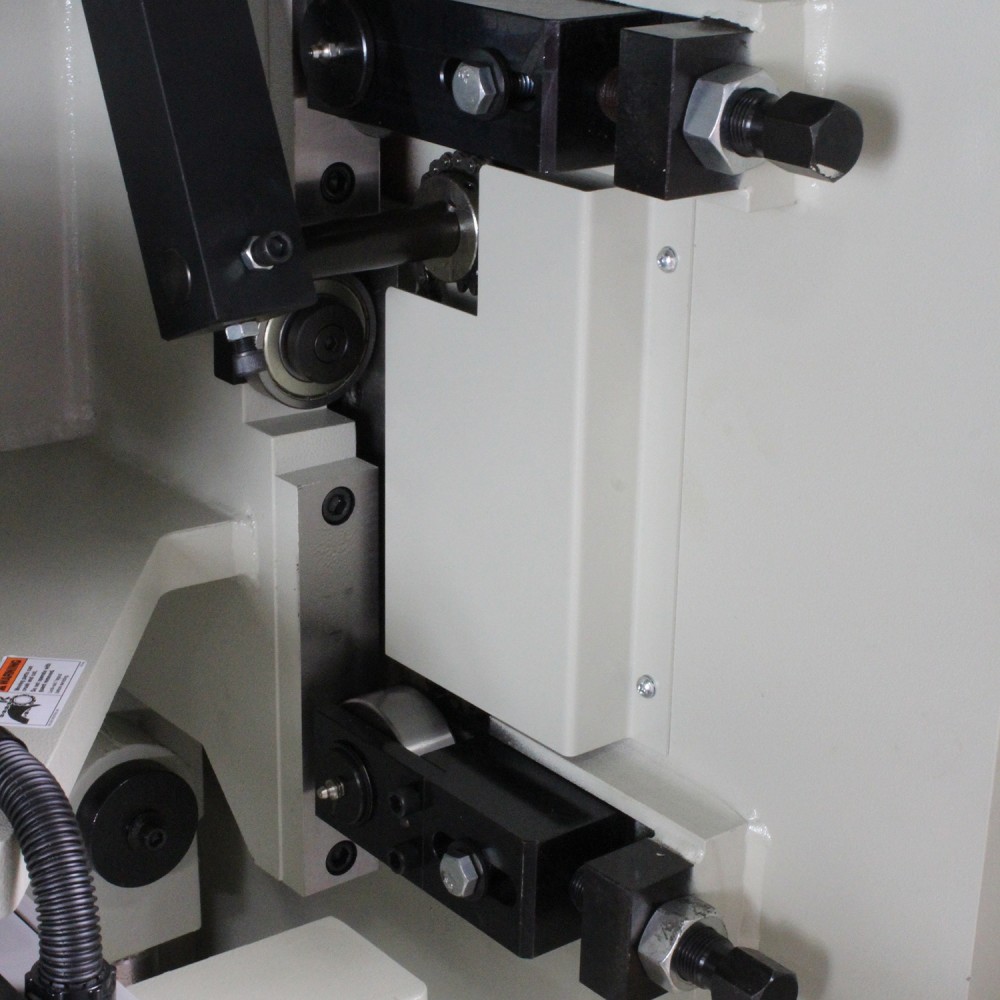

Adjust the blade gap in seconds to prevent crimping or folding, especially when working on thinner materials

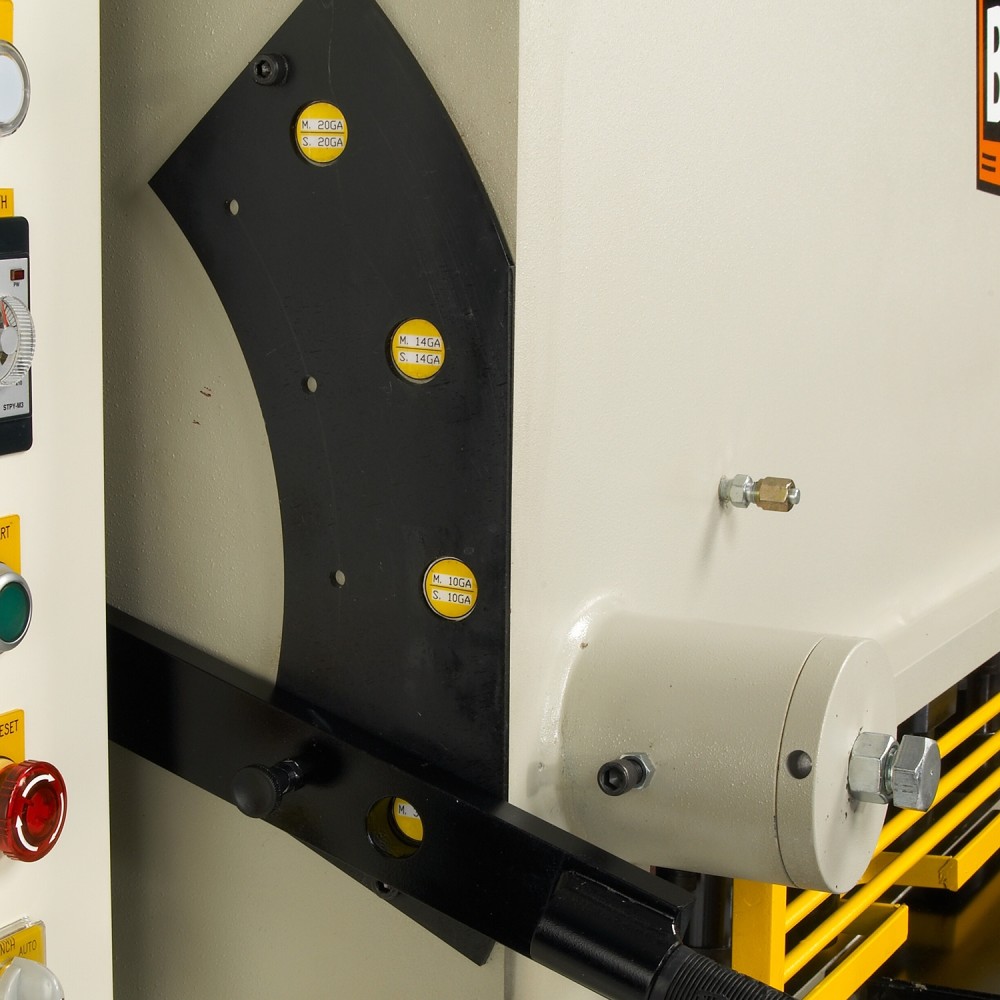

Adjustable rake angle can change for your material thickness, giving you cleaner cuts and reducing strain on the hydraulics
It’s simple to set the right rake angle – just hit a button, move the lever, and a light goes on when you reach the correct angle
Baileigh SH-5203-HD 220V 3 Phase 52 In. Length 3 Gauge Mild Steel Capacity Heavy Duty Hydraulic Sheet Metal Shear
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1007087
Assembled Weight (lbs)
5820
Country of Origin
Taiwan
Gauge Cutting Capacity
3
Package Contents
52 In. Heavy Duty Hydraulic Shear
Package Depth
88
Package Height
66
Package Weight
5820
Portable
No
