Description

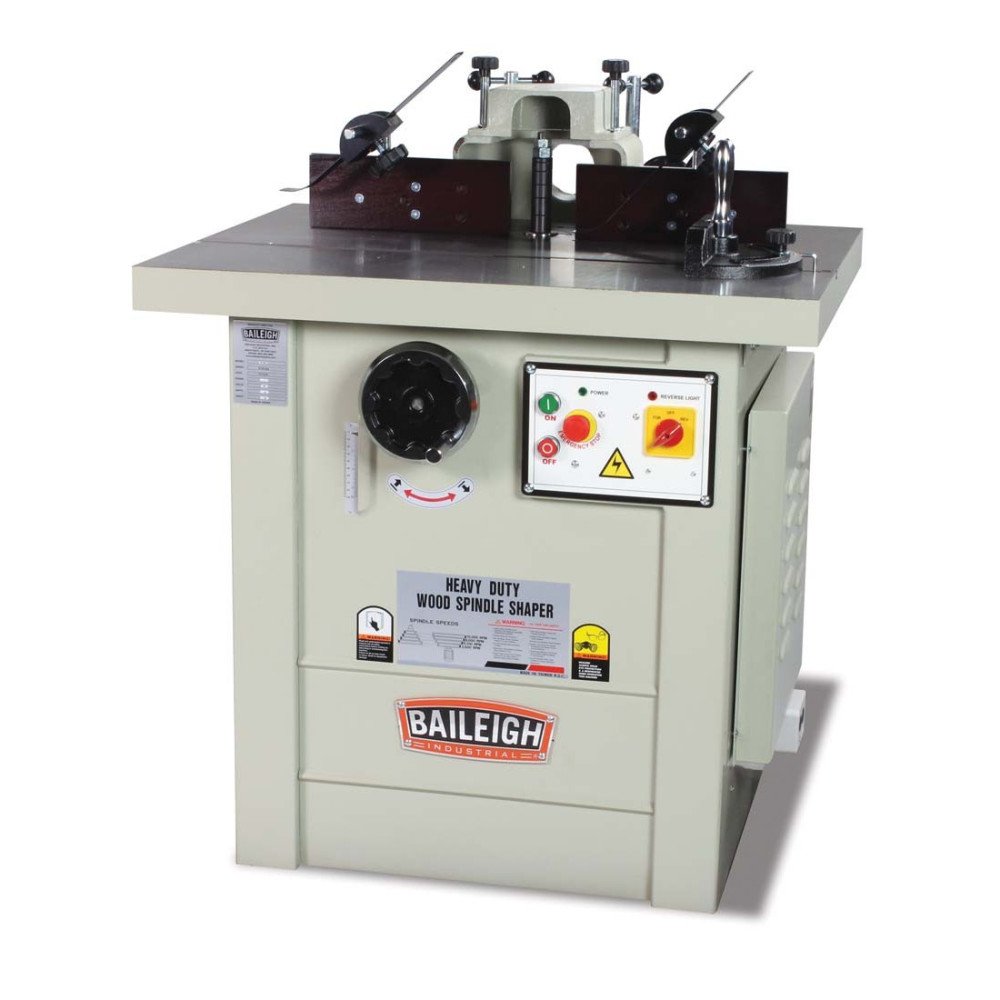

Baileigh SS-3528 Spindle Shaper 220V 1 Phase 5HP 28″

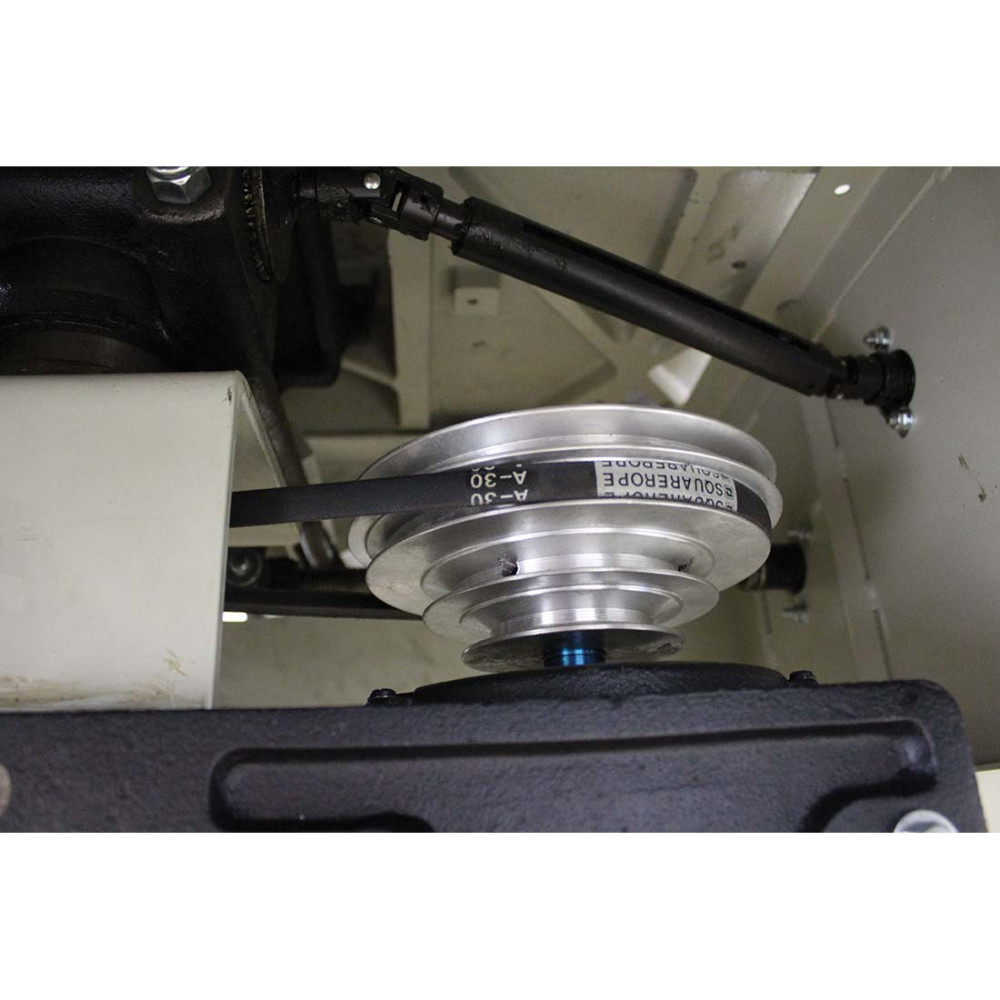

The SS-3528 3 spindle shaper from Baileigh Industrial is a great addition to any shop. This is the first in the 3528 series and is the most economical in the series. This spindle shaper is powered by a 5HP 220V 1 Phase motor that offers four spindle speeds. Speeds are changed by selecting the appropriate belt for the speed desired. Speeds offered are 3600, 5100, 8000, and 10000 Rpm. The SS-3528 includes 3 spindles, 3/4 In., 1 In. and 1-1/4 In. all with corresponding inserts.
Features
The precision machined 28 In x 35 In. table has a working height of 35 In., making it very comfortable to work on

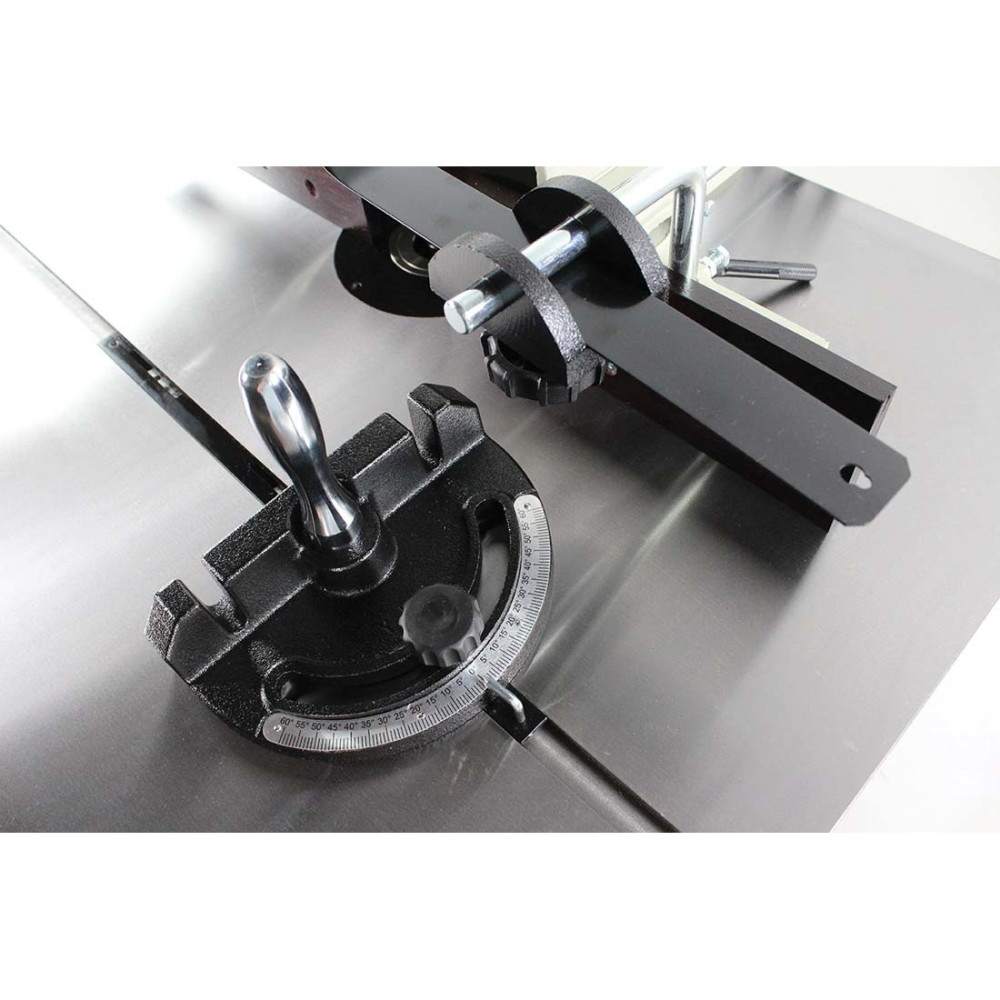

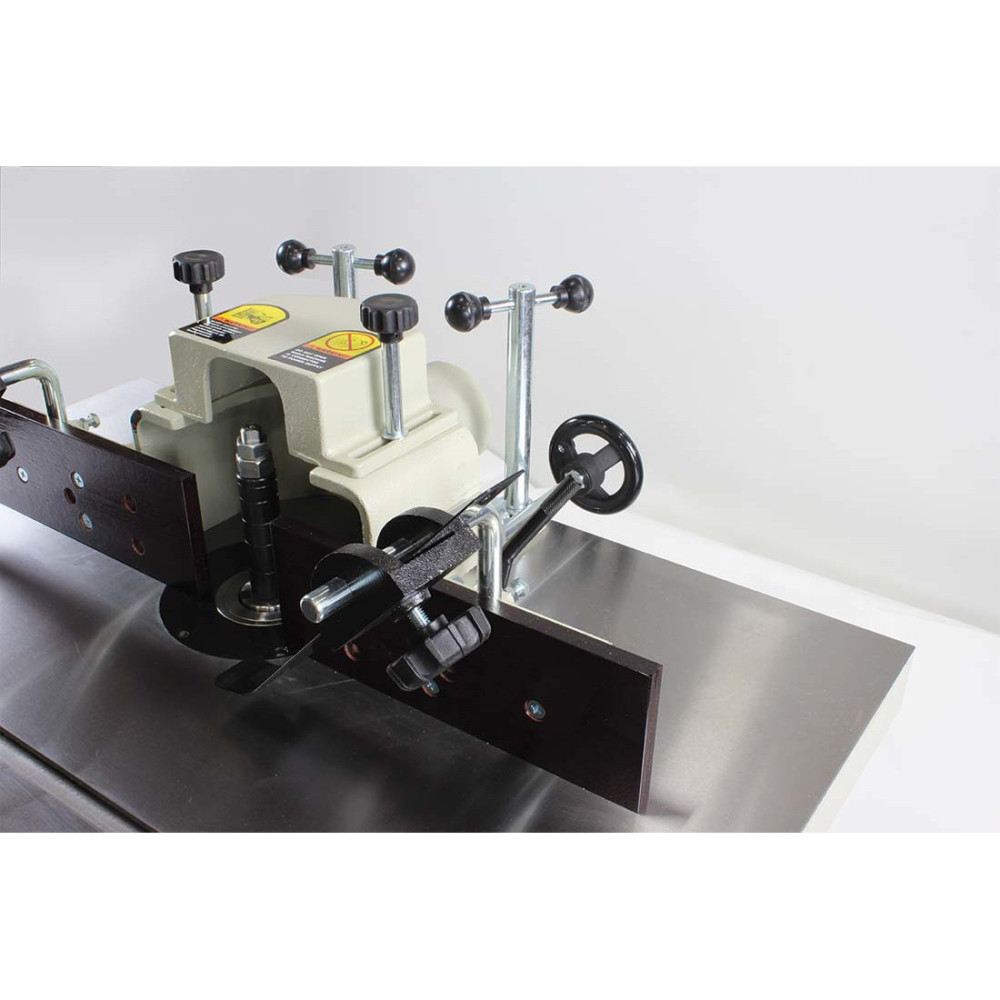

Its also comes with all table hardware and fences for accurate placement of material
A 4 In. dust port is also standard on this 5HP shaper
This spindle shaper is powered by a 5HP 220V 1 Phase motor
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1007609
Amperage (A)
0.0
Assembled Weight (lbs)
660
Country of Origin
Taiwan
Dust Collection
Yes
Dust Port
Yes
Dust Port Outside Diameter (in)
4
Horsepower (hp)
5
Micro Adjust Fence
Yes
Package Contents
Spindle Shaper, (3) Spindles, 3/4 in., 1 In. and 1-1/4 In. all with Corresponding Inserts
Package Depth
48
Package Height
48
Package Weight
660
Phase
1
Spindle Speed High (rpm)
10000
Spindle Speed Low (rpm)
3600
Table Length (in)
35.5
Table Width (in)
28
Variable Speed
Yes
