Description

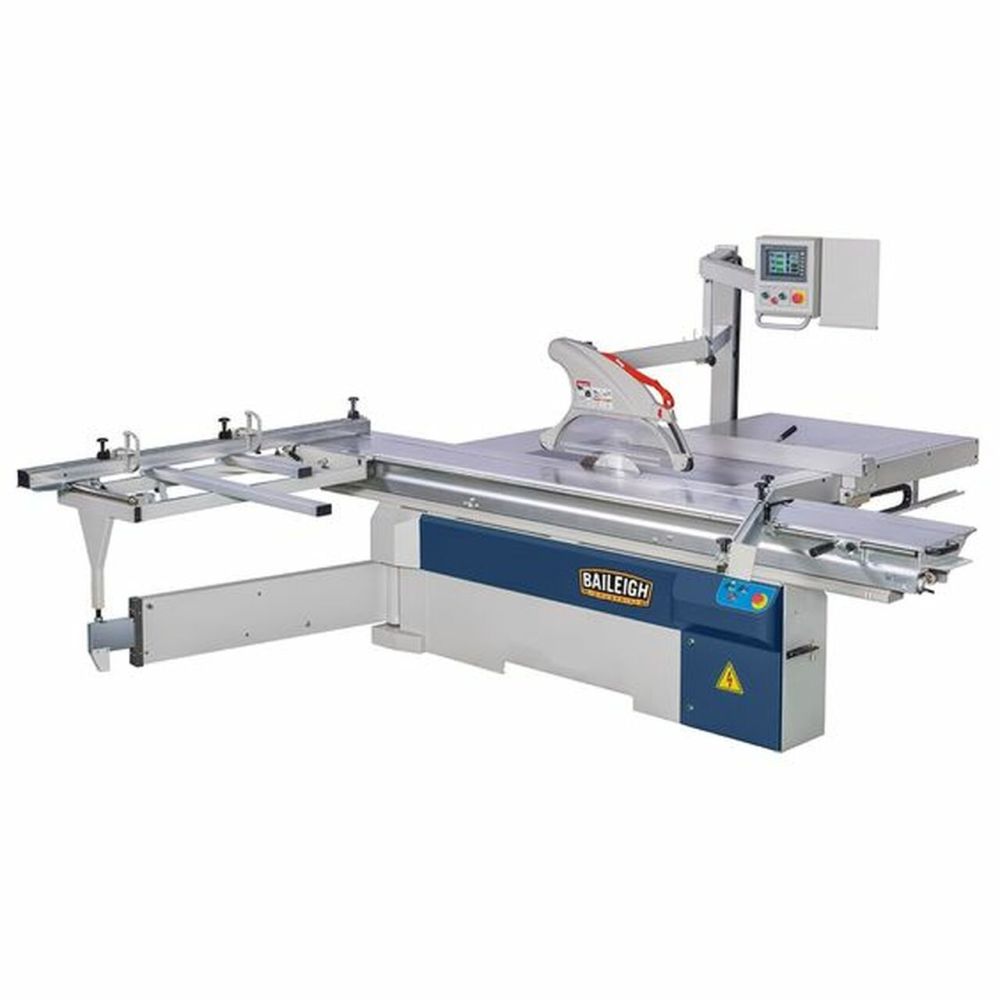

Baileigh STS-16120-CNC CNC Sliding Table Saw 220V 3 Phase 16″
This CNC table saw lets you store cut programs to ensure accuracy on high-volume, 3-shift schedules. With the sliding table, you need only one operator to cut 10 Ft. panels.
Features
7.5HP motor with 4 speeds: 3000, 4000, 5000 and 6000 Rpm, set the Rpm by manually moving the belts to different gears, digital readout (DRO) shows the blade speed to help with repeatability, comes standard with a 12 In. blade, but accepts up to a huge 16 In. blade, table wood saw turns on a 1 In. arbor, Runs on 220V 3 Phase power, 1HP scoring blade spins at 8000 Rpm to ensure a crisp, clean cut, no need to spend extra time on sanding afterwards

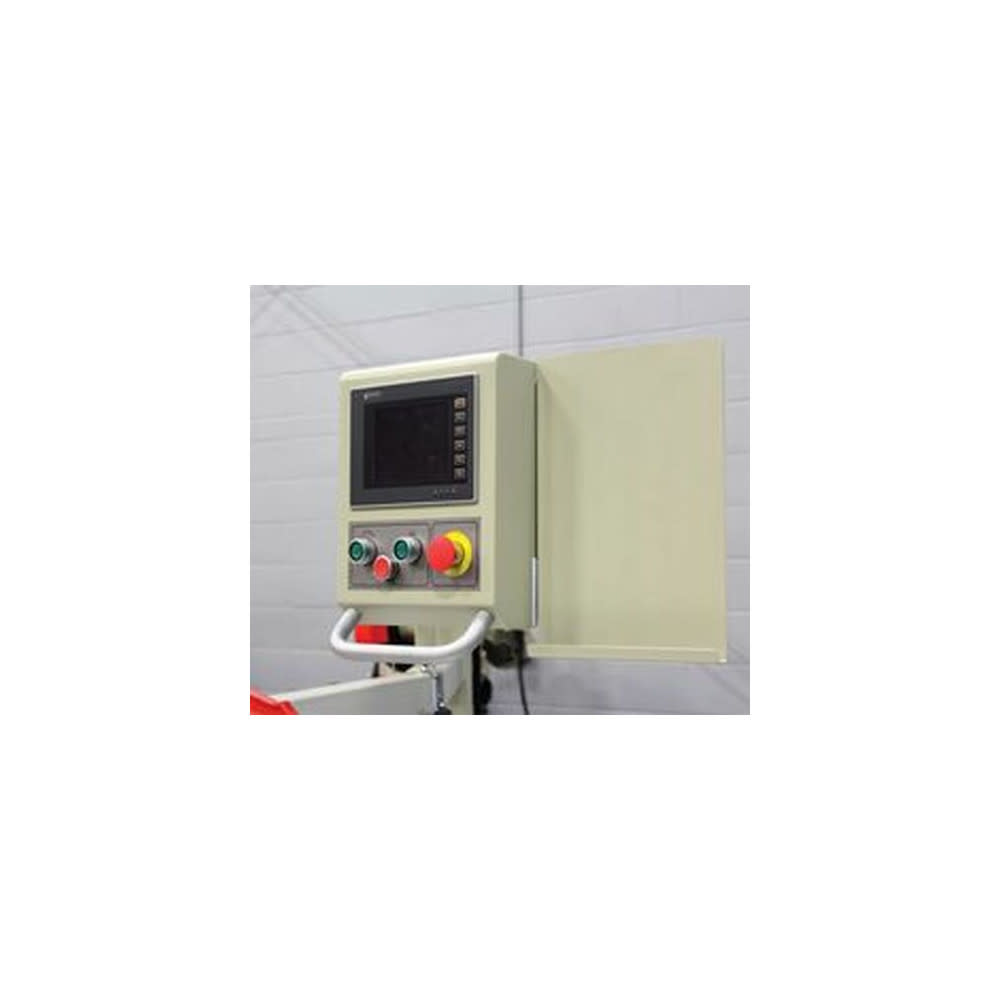

5.7 In. touchscreen control panel has a 300 program memory capacity, you can program the cutting width, blade tilt, and blade height of the main saw, as well as the scoring blade height, save cut settings for a given application or schedule (for example, “Monday Cuts In.), so they’re the same each time, simply choose your desired cut program, and the system will take the table to the right settings. then, manually push the wood towards the blade
Includes fences for ripping, crosscut, and angled cuts, servo motor moves the rip fence into place as programmed, no need to read scales, just dial it in, 2-position rip fence can lift out of the way for crosscutting

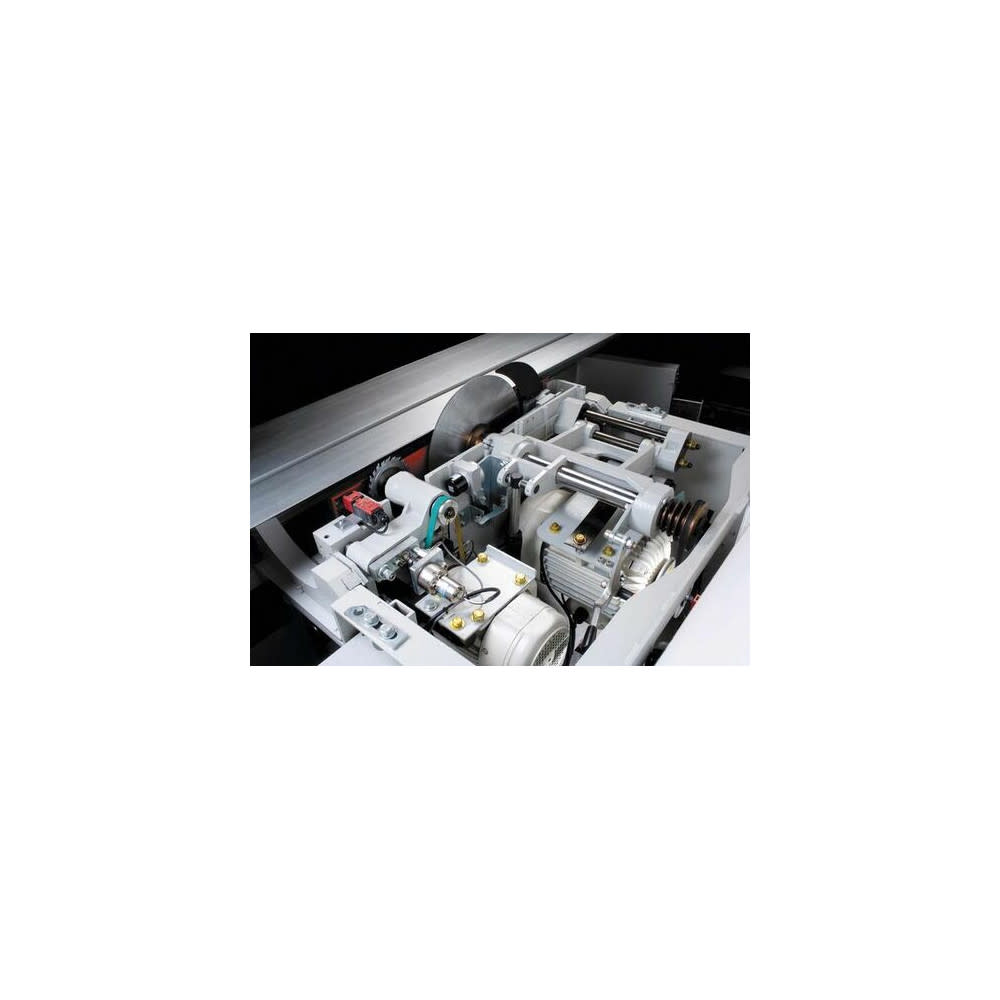

Cast iron frame backs the rip fence, keeping it parallel to the saw, crosscut fence offers 2 DROs (one for the main gantry fence and one for the extension) for repeatability, angle fence is scaled for precision, Heavy cast steel trunnion has boxed (not dovetailed) ways for extra rigidity

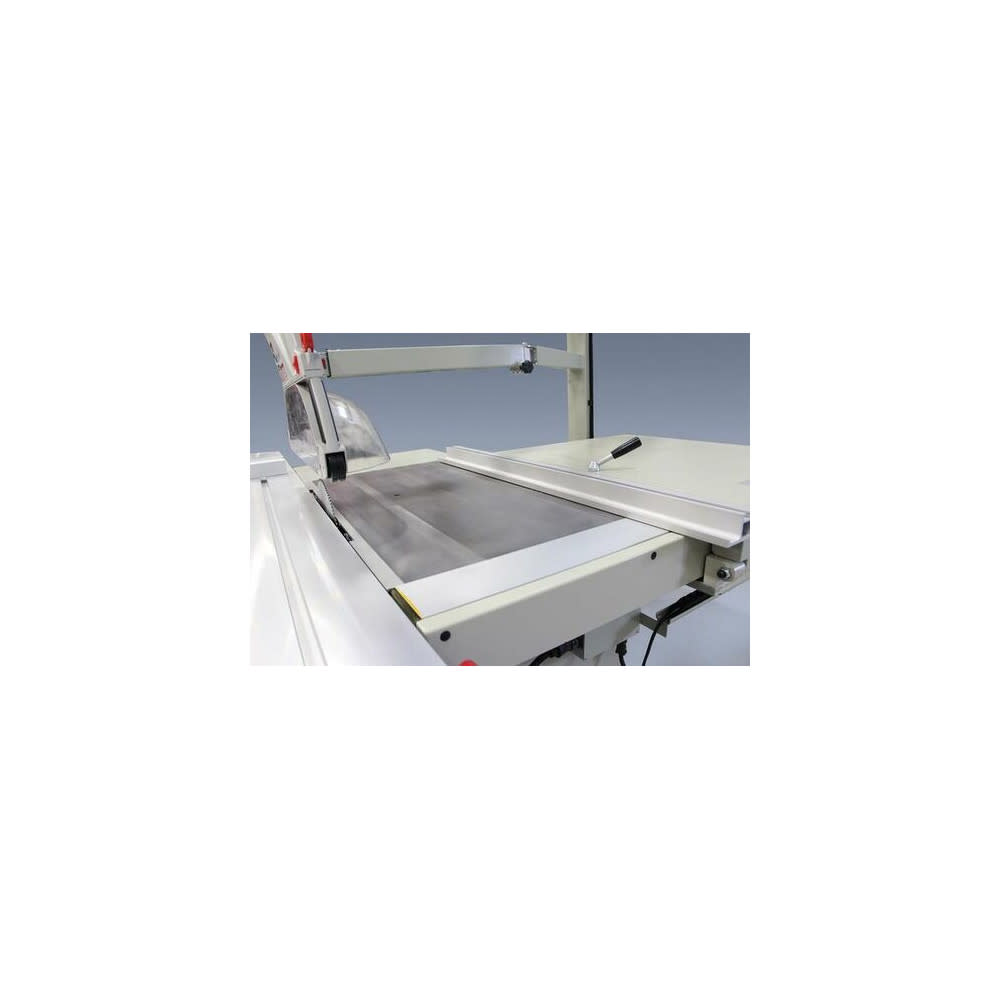

Enormous 15 In. x 125 In. sliding table is made of anodized, fully-extruded aluminum, so it’ll stay true and square, table slides on 4 precision shafts made of polished steel for the smoothest slide possible
Fully welded base made of 12-gauge steel reduces vibrations, maintains alignment, and keeps cuts accurate
Wiper system in the shafts eliminates build-up from sawdust and grease, you can slide a whole sheet of 4 Ft. x 8 Ft. material so easily you’d never think there’s weight on it
Load lock prevents the table from budging when you’re setting down large sheets of wood, 4 In. main dust port that you can hook up to an extraction system and keep your shop clean, Includes safety blade guards for straight or angled cuts that you can switch in seconds
Recommended for: Industrial production, especially cabinetry manufacturers, lumber liquidators, and railroad yards
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1020651
Amperage (A)
0.0
Assembled Weight (lbs)
2500
Blade Speed (rpm)
3000/4000/5000/6000
Caster Platform Included
No
Cordless / Corded
Corded
Country of Origin
Taiwan
CSA Certified
No
Dust Blower
No
Dust Port
Yes
Dust Port Outside Diameter (in)
4
ETL Listed
No
Fence Included
Yes
Flesh Sensing System
No
Horsepower (hp)
7.5
Material
Aluminum
Maximum Dado Diameter (In)
NA
Miter Gauge
No
Package Contents
Table Saw, Fences for Ripping, Crosscut and Angled Cuts, Safety Blade Guards
Package Depth
42
Package Height
91
Package Weight
2500
Phase
3
Repetitive Cut Marking system
No
Spindle Lock
No
Table Length (in)
126
Table Material
Aluminum
Table Width (in)
15
UL Listed
No
