Description

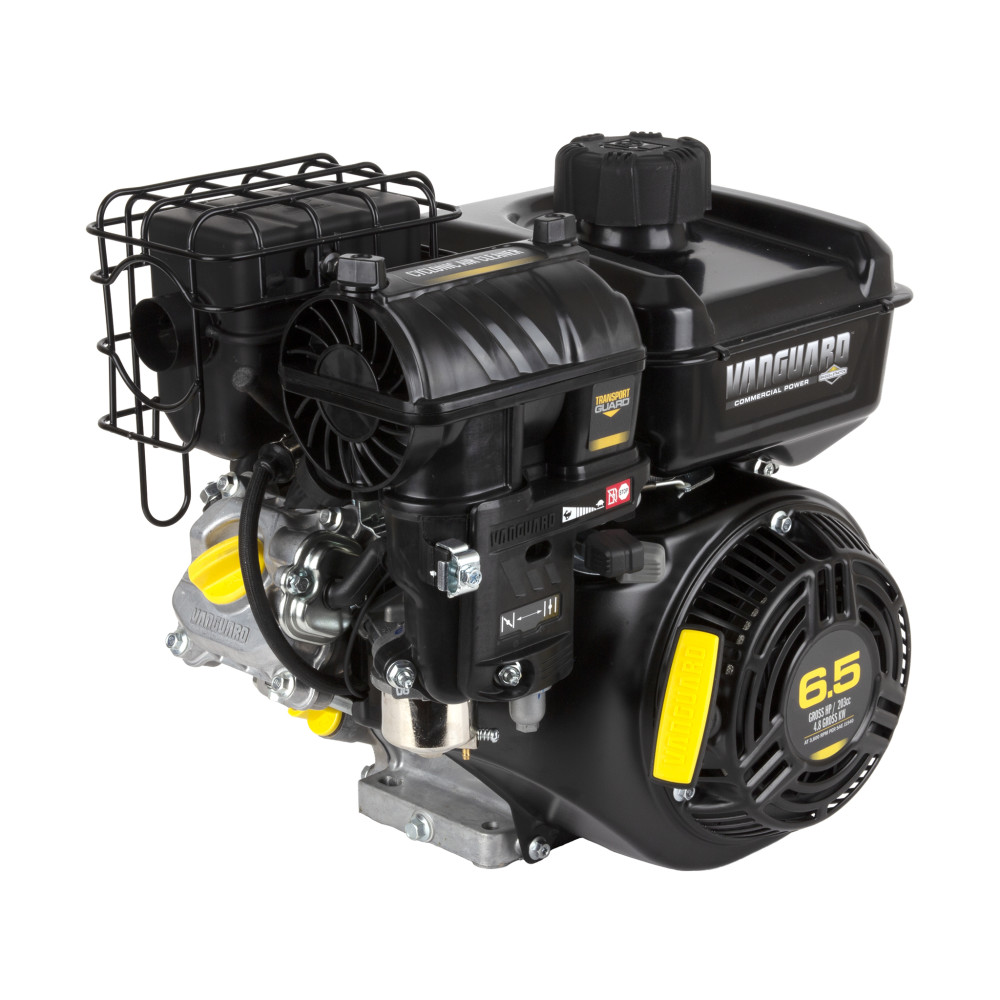

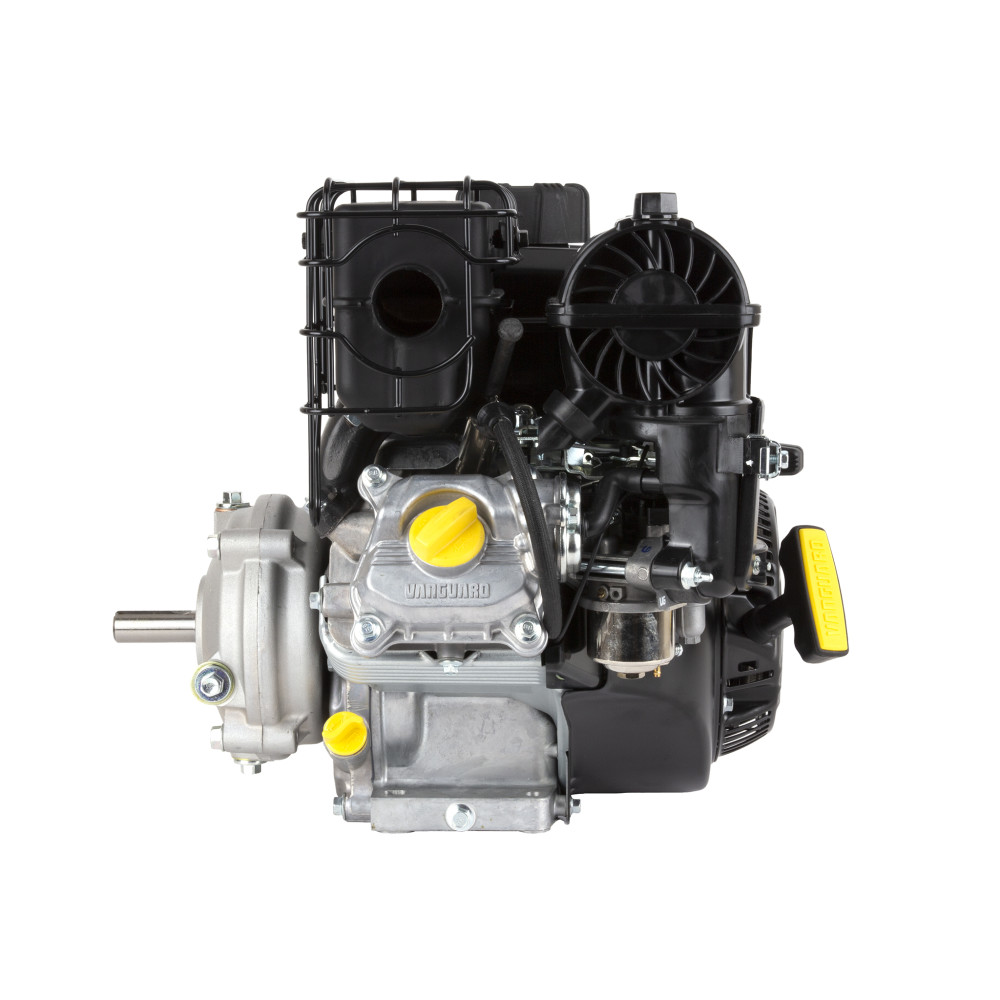

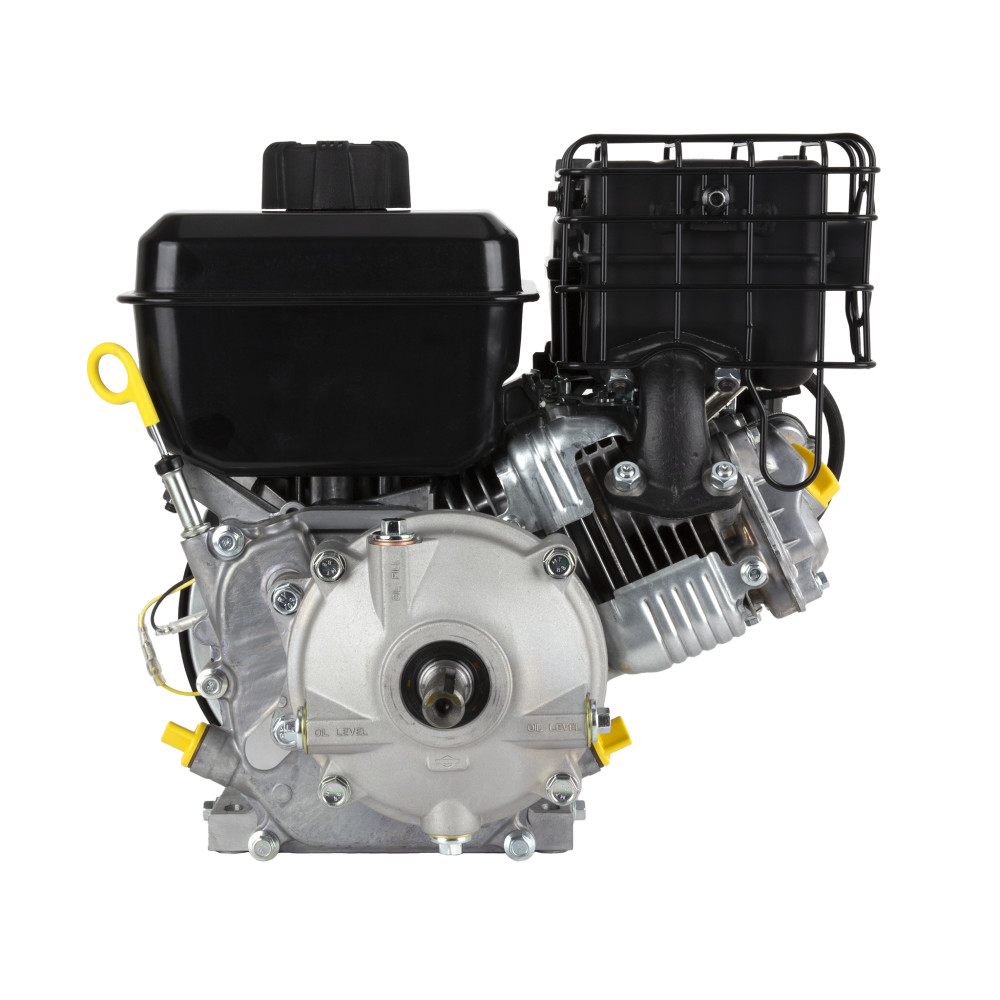

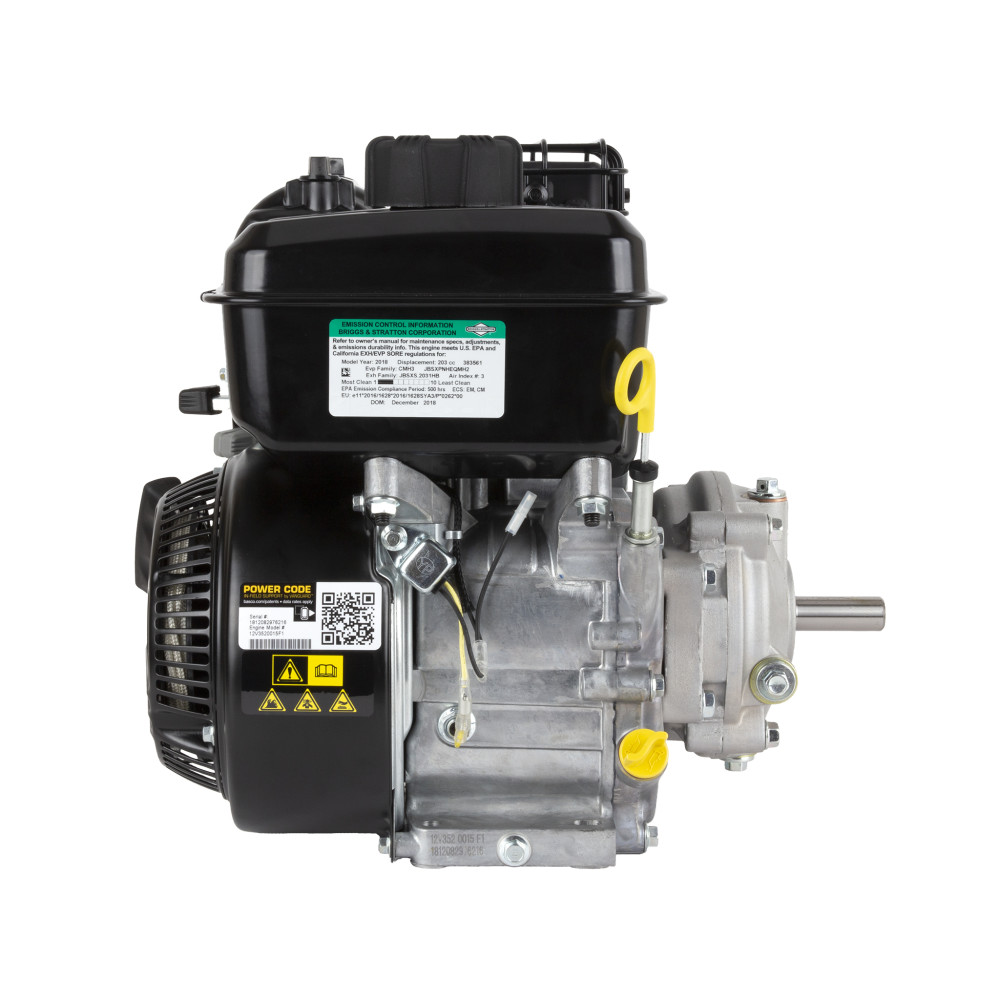

Briggs & Stratton Vanguard Engine Single Cylinder 4 Cycle 3/4″ x 2″ Crankshaft
Vanguard Single-Cylinder engines are the result of listening to leading equipment manufacturers, contractors and owners of rental stores. Every design innovation and integrated technology is customer-driven, because out there where the work gets done, proven engine performance means business.
Features
203cc
3-in-1 controls with TransportGuard System

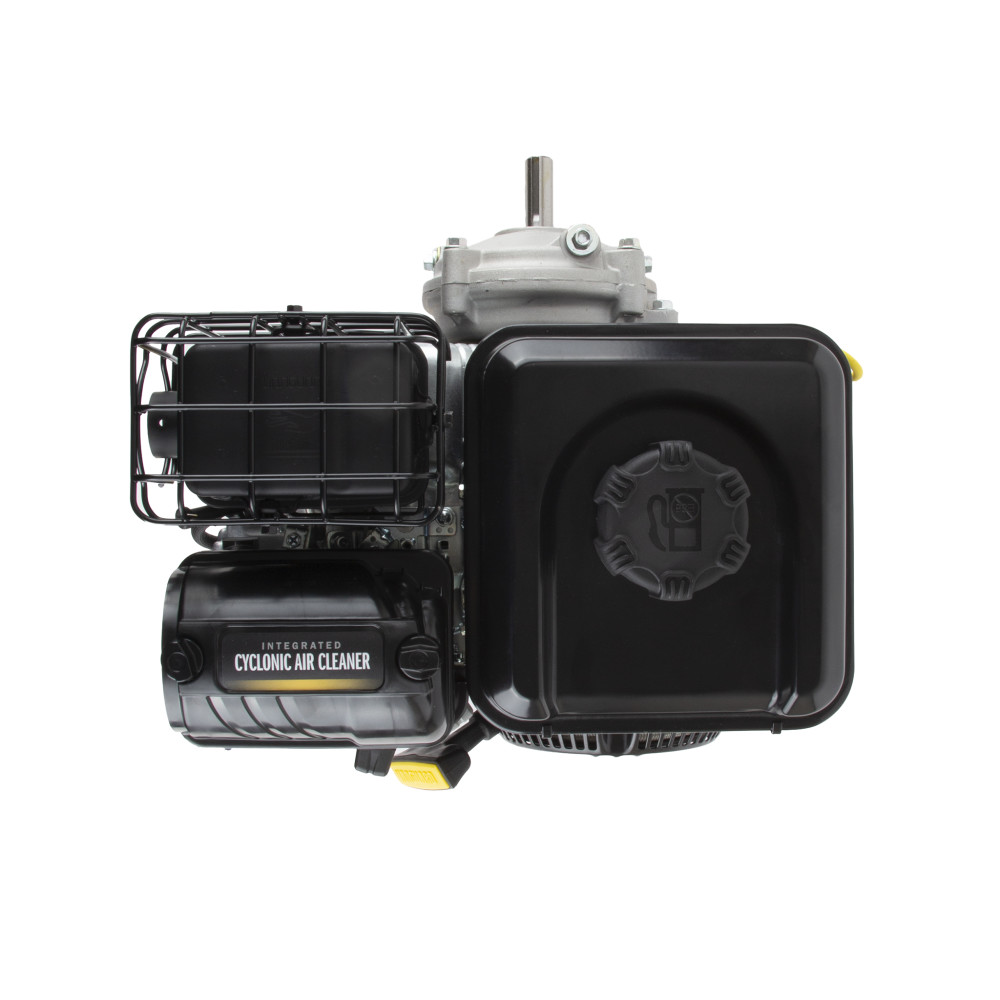

Standard Integrated Cyclonic Air Filtration
Starts Down to -20 degrees F
1-Pull Starting
Nano Media Air Cleaner Filter Element with Autoshed Technology
Commercial-style Carburetor
Liquid Cylinder Gasket
Stale Fuel Resistance
Specifications
Acme Tools Brand Name
BRIGGS AND STRATTON
Acme Tools Part Number
12V352-0015-F1
Assembled Weight (lbs)
46.75
Camshaft Configuration
OHV
CARB Compliant
Yes
Carburetor Design
Butterfly Float Type
Country of Origin
China
Cylinder Count
1
Dry Weight (lbs)
46
Engine Block Material
Cast Aluminum Alloy
Engine Bore (mm)
68.07
Engine Configuration
Single
Engine Cooling System
Air Cooled
Engine Cycle
4-Stroke
Engine Displacement (cc)
203
Engine Fuel Type
Gasoline
Engine Governor System
Centrifugal
Engine Horsepower (hp)
6.5
Engine Oil Sump Style
Wet
Engine Output Shaft Direction
Horizontal Shaft
Engine Stroke (mm)
56.13
Fuel Capacity (qt)
3.2
Ignition System
CD (Capacitance Discharge)
Oil Capacity (qt)
20
Package Contents
Engine, deflector/spark arrestor,owners manual
Package Depth
19.5
Package Height
16.0
Package Weight
46.75
Package Weight (lbs)
46.75
PTO Shaft Rotation
Counterclockwise (PTO shaft side)
Starting System
Recoil
Type of Lubrication System
Splash
