Description

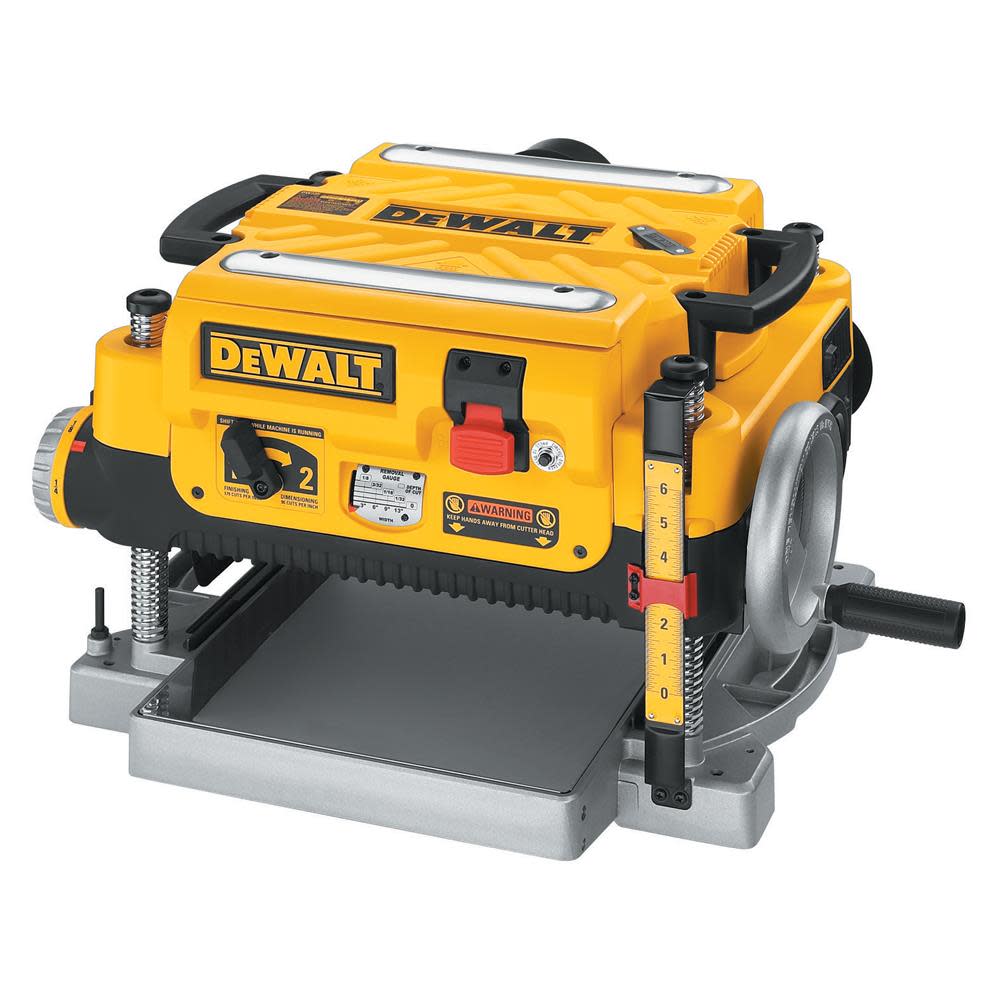

DEWALT Thickness Planer 13″ 2 Speed 3 Knife
This heavy-duty thickness planer features 120V AC, 15 amp, and a 10,000 RPM three-knife cutter-head. Built-in carriage lock prevents snipe by assuring minimal carriage movement on four posts while material is feeding. The 19-3/4-in cast base delivers two times the rigidity of existing planers with folding tables. The 2-speed gearbox allows for 96 or 179 cuts per inch for better surface finish and longer knife life. Also features fan-assisted chip ejection which prolongs knife life and assists dust collection with chip removal.
Features

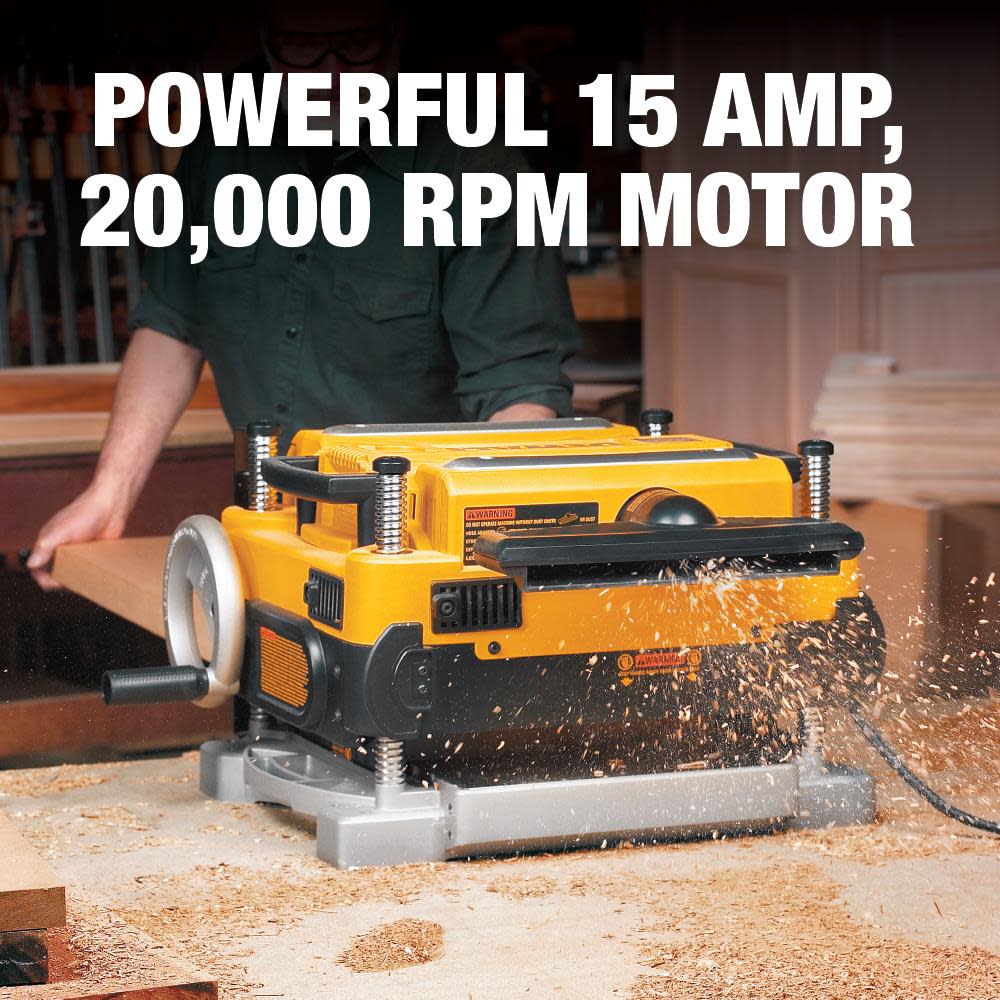

Powerful 15-amp, 20,000 RPM motor handles larger cuts in wider materials with ease

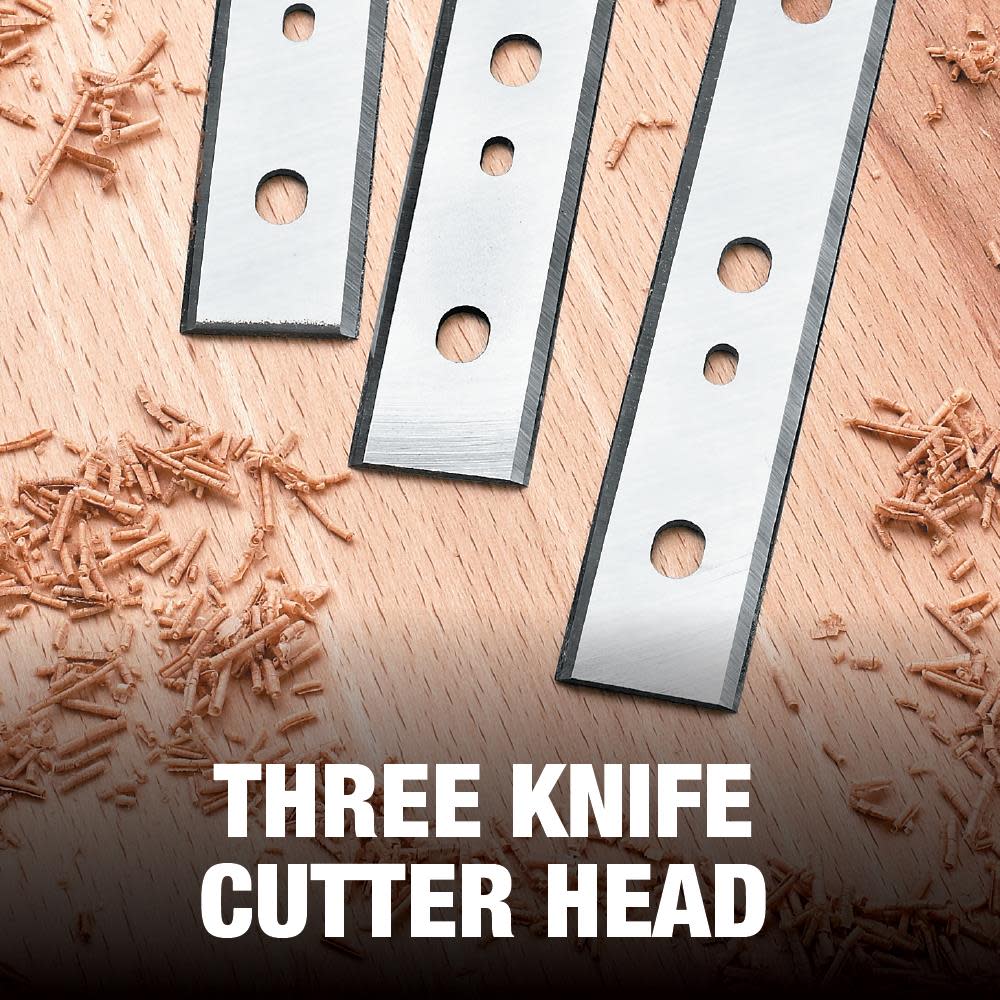

3-knife cutter-head with 10,000 RPM cutter head speed delivers 30% longer knife life and makes knife change faster and easier

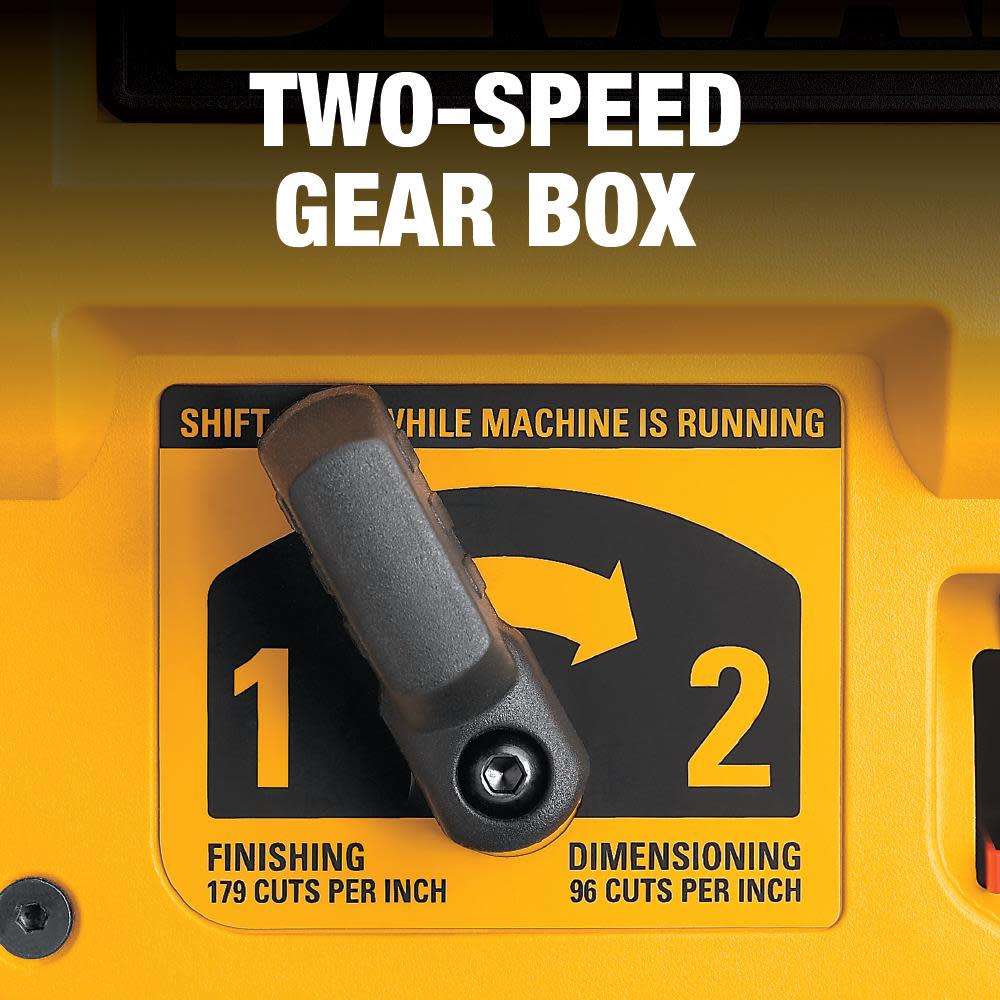

2-speed gear box allows users to change feed speed to optimizing cuts per inch at 96 or 179 CPI

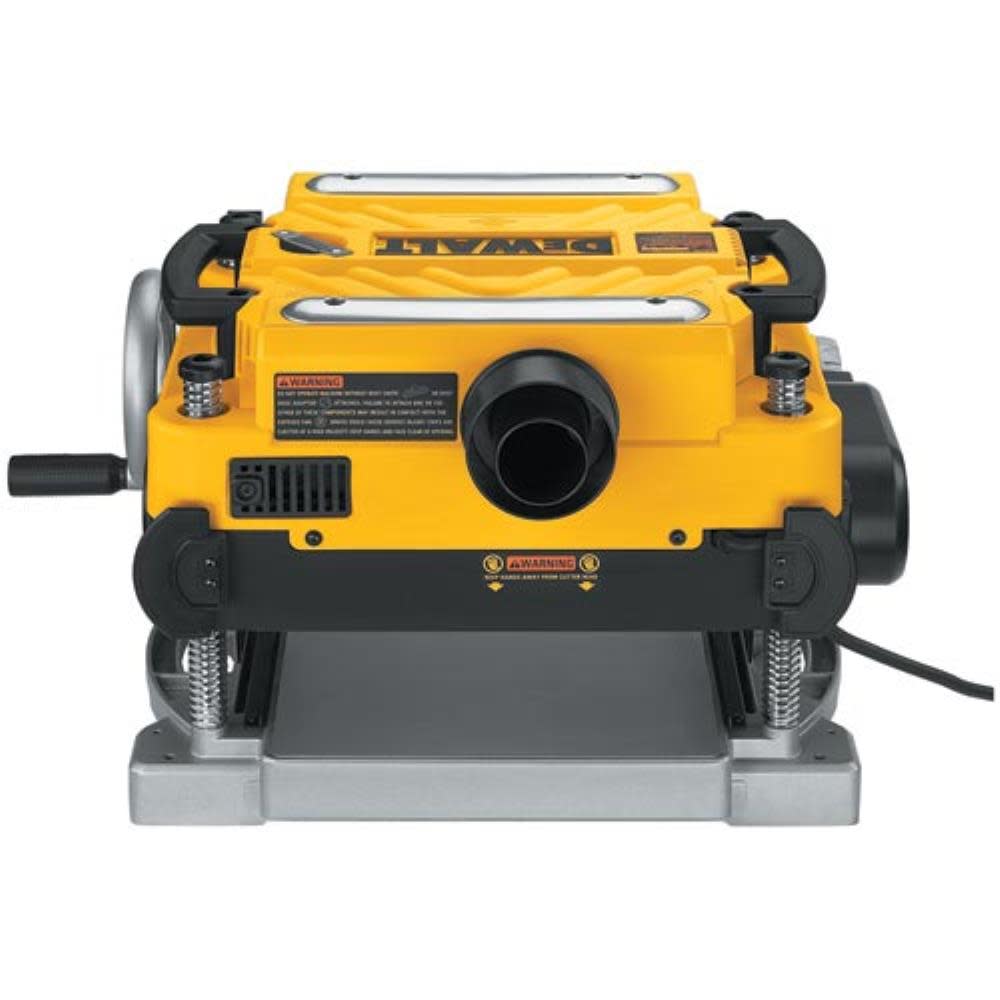

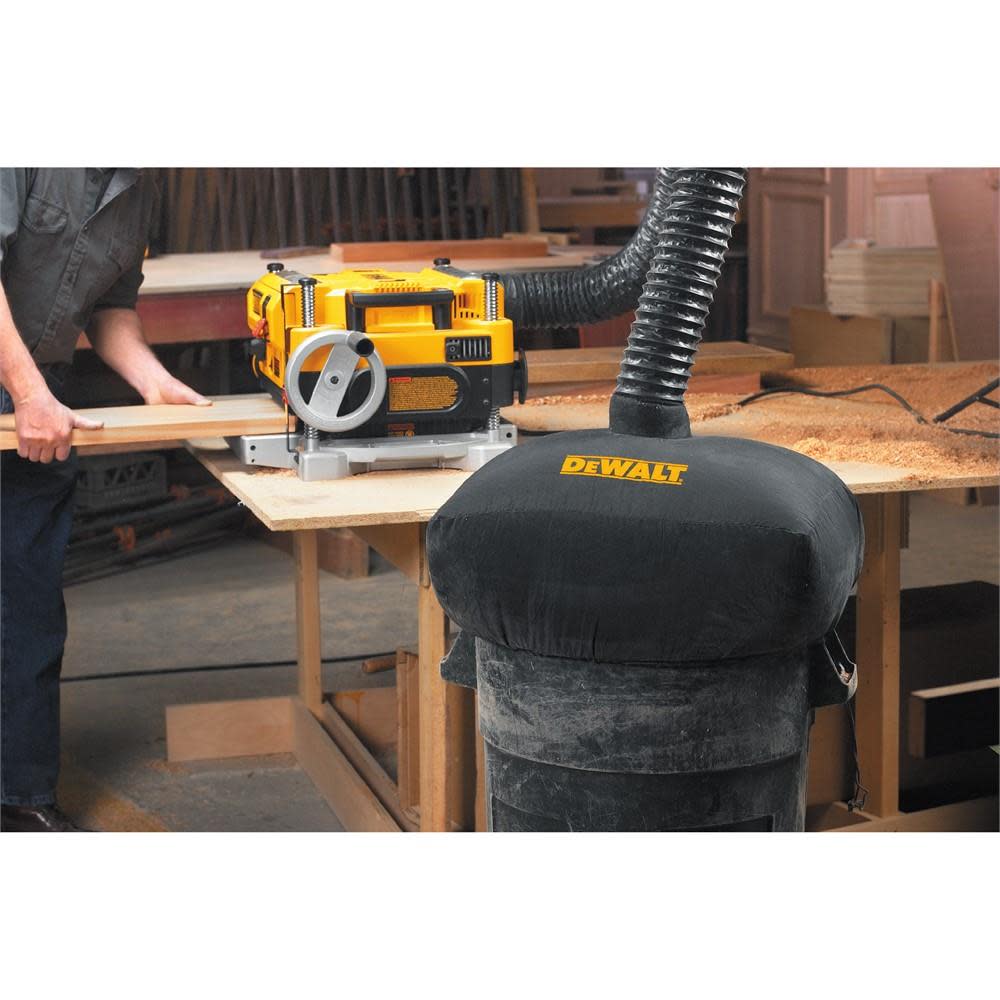

Fan-assisted chip ejection vacuums chips off of the cutter-head and exhausts them out of the machine
19-3/4-in cast aluminum base is 2X more rigid than a standard 10-in base and folding tables
Automatic carriage lock reduces the movement that causes snipe without the need for manual engagement by the user

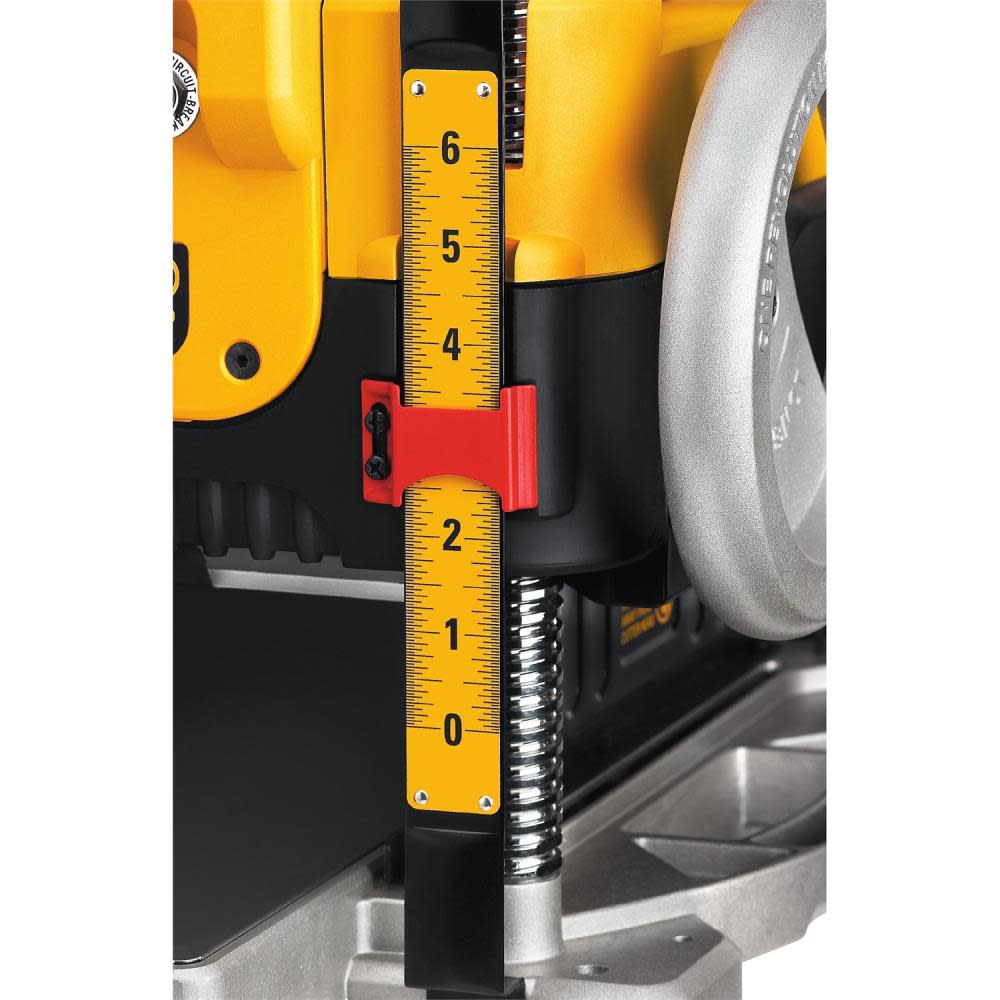

Material removal gauge and extra-large thickness scale deliver accurate cuts with every pass
Extra-large turret depth stop allows user to return to most frequently used thicknesses with ease
Includes dust hose adapter, thickness planer crank handle, and blade change T-wrench
Specifications
Acme Tools Brand Name
DEWALT
Acme Tools Part Number
DW735
Amperage (A)
15.0
Assembled Weight (lbs)
47.8
Bench or Stationary
Bench
Blade Count
3
Blade Type
Planer Knife
California Proposition 65 Warning Required
Yes
Color / Finish
DEWALT® Yellow, Black
Cord Length (ft)
13.0
Cordless / Corded
Corded
Country of Origin
Taiwan
CSA Certified
Yes
Drive Motor System
Electric
ETL Listed
No
Height (in)
18.0
Housing Material
Plastic
Internal Supplier Part #
DW735
Internet Product Code (IPC)
1D8E9AB68B3
Length (in)
24.0
Lock-on Switch
Yes
Manufacturer Warranty
Limited 3 Year Warranty / 1 Year Free Service Contract / 90 Day Money Back Guarantee
Maximum Cutting Depth (in)
0.125
Maximum RPM
20000.0
Maximum Width Cutting Capacity (in)
13.0
Motor Horsepower (hp)
Universal Motor
Overall Weight (lbs)
92.0
Package Contents
Dust hose adapter; Dust-ejection chute
Package Depth
24.0
Package Height
18.75
Package Weight
91.75
Package Weight (lbs)
91.75
Reversible
Yes
Switch Type
Speed Gear Box
UL Listed
Yes
Variable Speed
Yes
Voltage
110 Volts
Width (in)
22.0
